CJPF86/NC XLPE Insulated Low-smoke Halogen-free Armored Marine Power Cable
Product Overview
The CJPF86/NC is a premium-grade, fully sheathed marine power cable designed for mission-critical applications demanding the highest levels of fire safety, environmental protection, and circuit integrity. It integrates fire resistance (IEC 60331), low-smoke zero-halogen (LSZH) materials, and robust copper armor with a complete dual-sheath system. Ideal for essential and emergency circuits on offshore platforms, ships, and in hazardous industrial sectors such as power generation, petrochemical, and mining.
Key Features
-
Complete Circuit Integrity: Fire Resistant (IEC 60331) to maintain power supply during a fire, coupled with Flame Retardant (IEC 60332) properties to prevent flame propagation.
-
Maximum Safety in Confined Spaces: Low-Smoke Halogen-Free (IEC 61034, IEC 60754) construction minimizes opaque smoke and eliminates corrosive/toxic gases, protecting personnel and equipment.
-
Full Environmental Sealing: Features both an inner and an outer sheath made of Thermoplastic Polyolefin (SHF1), providing superior protection against moisture, oils, and chemicals.
-
Robust Mechanical Protection: Tinned copper wire braid armor offers excellent flexibility, grounding, and resistance to mechanical stress.
-
Reliable Insulation System: Mica glass tape over XLPE insulation ensures exceptional thermal and electrical stability under fire conditions.

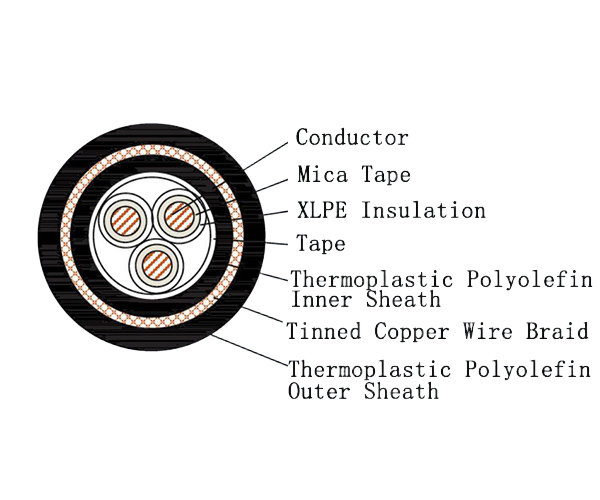

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned/Plain Stranded, Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + XLPE Insulated |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Armor | 8 | Tinned/Plain Copper Wire Braided |
| Outer Sheath | 6 | Thermoplastic Polyolefin (SHF1) |
| Outer Sheath Color | / | Black or other Color |
| Flammability | NC | Halogen Free Low Smoke Fire Resistant |
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Maximum Continuous Operating Temperature: 90°C
-
Conductor Cross-Sectional Area Range: 0.75 mm² to 300 mm²
-
Number of Cores: 1 to 37 Cores
Applicable Standards
-
IEC 60092-350, 353 – Design
-
IEC 60228 – Conductors
-
IEC 60092-360 – Insulation and Sheath
-
IEC 60331 – Fire Resistance
-
IEC 60332-1 – Flame Retardant (Single Cable)
-
IEC 60332-3-22 – Flame Retardant (Bunched Cables)
-
IEC 60754 – Halogen-free (Corrosivity of Gases)
-
IEC 61034 – Low Smoke Density
Typical Applications
-
Emergency generators, pumps, and lighting systems on oil rigs and FPSOs.
-
Critical alarm, communication, and safety system circuits in marine and offshore environments.
-
Evacuation routes, lifeboat stations, and engine room control wiring.
-
Power stations, chemical plants, tunnels, and public buildings where enhanced fire performance and low toxicity are mandatory.
