Product Overview
The CHEV92/SA is a heavy-duty, armored marine communication cable designed for installations requiring maximum mechanical protection in standard environmental conditions. It features EPR insulation for reliable performance, galvanized steel wire armor for superior physical protection, and a durable dual-layer PVC sheath. This robust construction is engineered to safeguard communication and control circuits against impact, crushing, and abrasion in demanding marine and industrial settings.
Key Features & Benefits
-
Superior Mechanical Protection: The galvanized steel wire braid armor (9) provides exceptional resistance against crushing, impact, and rodent damage, making it ideal for exposed runs, direct burial, or areas with high physical risk.
-
Durable & Cost-Effective Sheathing: The dual-layer PVC sheath (V inner & 2 outer) offers reliable protection against abrasion, moisture, and general environmental factors, providing a tough external barrier at a competitive cost.
-
Flame Retardant: Complies with IEC 60332 flame retardancy standards for both single (IEC 60332-1) and bunched (IEC 60332-3-22) cable installations, enhancing safety.
-
Flexible Design: Compared to steel tape armor, the braided wire armor maintains greater cable flexibility, easing installation over longer runs and around bends.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.
-
Outer Sheath Color: Standard Black (other colors available on request).

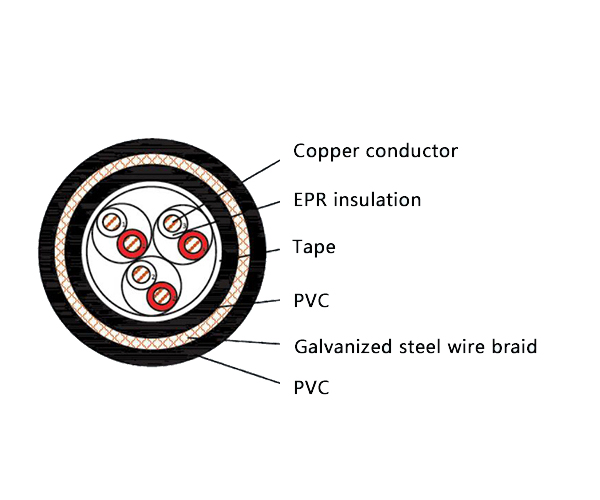

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR (Ethylene Propylene Rubber) |
| Inner Sheath | V | PVC |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 2 | PVC Outer Sheath |
| Flammability | SA | Bunched Cables Flame Retardant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Low Smoke Emission: IEC 61034
-
Note on Halogens: This cable contains PVC and is not halogen-free per IEC 60754.
Applications
This armored cable is designed for general-purpose communication circuits where physical protection is the primary concern:
-
Marine & Offshore: General telecommunication and control wiring on ships and platforms for exposed deck runs, machinery spaces, or areas where cables are susceptible to physical damage.
-
Industrial & Infrastructure: Data and control lines in power plants, water treatment facilities, and industrial plants where cables require mechanical protection within cable trays, conduits, or for direct burial.
