Product Overview
The CHEFP92/SA is a heavy-duty, armored marine communication cable engineered for demanding installations where robust mechanical protection and environmental resistance are critical. It features EPR insulation, a metallic screen, galvanized steel wire armor, and a composite sheath system with a PCP inner sheath and PVC outer sheath. This construction provides exceptional physical durability, EMI shielding, and flame retardancy for reliable communication circuits in harsh marine and industrial environments.
Key Features & Benefits
-
Maximum Mechanical Protection: The galvanized steel wire braid armor (9) offers superior resistance to crushing, impact, and rodent damage, making it suitable for exposed runs, direct burial, or areas with high physical risk.
-
Durable Environmental & Chemical Resistance: The PCP (Polychloroprene) inner sheath (F) provides excellent resistance to oils, chemicals, and weathering. The external PVC outer sheath (2) adds further protection against abrasion and general environmental factors.
-
Effective EMI/RFI Shielding: The integrated tinned copper braid or foil screen (P) ensures protection for sensitive data and instrumentation signals against electromagnetic interference, maintaining signal integrity.
-
Flame Retardant: Complies with IEC 60332 flame retardancy standards for enhanced safety in both single and bunched cable installations.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.
-
Outer Sheath Color: Standard Black (other colors available on request).

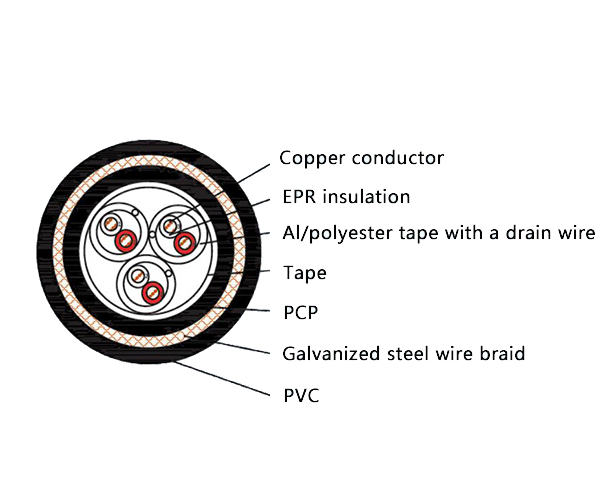

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR (Ethylene Propylene Rubber) |
| Inner Sheath | F | PCP (Polychloroprene) |
| Screen | P | Tinned Copper Wire Braid, or Alu/Polyester Tape + Copper Drain Wire |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 2 | PVC Outer Sheath |
| Flammability | SA | Bunched Cables Flame Retardant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Low Smoke Emission: IEC 61034
-
Note on Halogens: This cable contains PCP and PVC materials and is not halogen-free per IEC 60754.
Applications
This rugged, screened, and armored cable is designed for the most demanding installations:
-
Marine & Offshore: External deck wiring, machinery space communications, and offshore platform data links exposed to physical damage, moisture, oils, and chemicals.
-
Heavy Industrial: Critical control and instrumentation circuits in mining, chemical processing plants, steel mills, and power generation facilities where cables require maximum mechanical protection and resistance to harsh industrial atmospheres.
