CJPF80/NC XLPE Insulated Low-smoke Halogen-free Armored Marine Power Cable
Product Overview
The CJPF80/NC is a specialized marine power cable engineered for critical circuits where fire safety, circuit integrity, and personnel protection are paramount. Combining fire resistance (IEC 60331), low-smoke zero-halogen (LSZH) properties, and copper wire braid armor, it is designed for essential power, lighting, and control systems on offshore platforms and in high-risk industrial environments like power plants, chemical facilities, and mining.
Key Features
-
Enhanced Fire Safety: Fire Resistant (IEC 60331) construction maintains circuit integrity during a fire, and is Flame Retardant (IEC 60332) to inhibit flame spread.
-
Personnel & Environmental Safety: Low-Smoke Halogen-Free (IEC 61034, IEC 60754) sheath minimizes toxic fumes and corrosive smoke, crucial for enclosed spaces.
-
Dual-Layer Protection: Features a Thermoplastic Polyolefin (SHF1) inner sheath and a tinned copper wire braid armor for mechanical strength and grounding.
-
Mica/XLPE Insulation: Mica glass tape combined with XLPE provides robust thermal and electrical insulation under extreme conditions.
-
Comprehensive Range: Available from 0.75 mm² to 300 mm², with 1 to 37 cores.

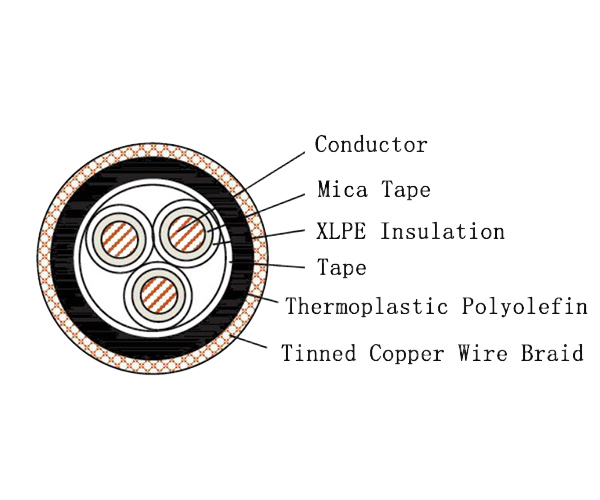

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned/Plain Stranded, Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + XLPE insulated |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Armor | 8 | Tinned/Plain Copper Wire Braided |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | NC | Halogen Free Low Smoke Fire Resistant |
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Maximum Continuous Operating Temperature: 90°C
-
Conductor Cross-Sectional Area Range: 0.75 mm² to 300 mm²
-
Number of Cores: 1 to 37 Cores
Applicable Standards
-
IEC 60092-350, 353 – Design
-
IEC 60228 – Conductors
-
IEC 60092-360 – Insulation and Sheath
-
IEC 60331 – Fire resistance
-
IEC 60332-1 – Flame retardant (single cable)
-
IEC 60332-3-22 – Flame retardant (bundled cables)
-
IEC 60754 – Halogen-free (corrosivity of gases)
-
IEC 61034 – Low smoke density
Typical Applications
-
Emergency power and lighting circuits on oil & gas platforms
-
Critical alarm and safety system wiring on ships and offshore installations
-
Escape routes and evacuation systems in marine and industrial complexes
-
Power plants, chemical plants, and tunnels requiring enhanced fire safety and low toxicity
