CJV/SA XLPE Insulated Marine Power Cable
Product Overview
The CJV/SA is a flame-retardant, non-armored marine power cable designed for general power, lighting, and control circuits where flexibility and weight savings are prioritized over mechanical protection. Its compact and flexible construction makes it suitable for a wide range of applications in offshore installations (such as oil platforms), as well as in industrial sectors including metallurgy, chemical plants, power generation, and mining.
Key Features
-
Flexible & Lightweight: Non-armored design offers excellent flexibility, ease of handling, and installation in space-constrained areas.
-
XLPE Insulation: Provides superior thermal resistance (rated for continuous operation at 90°C) and stable electrical performance.
-
Flame Retardant: Meets stringent IEC 60332-1 and IEC 60332-3-22 standards, ensuring safety in both single and bunched cable runs.
-
PVC Sheath: Offers good protection against moisture, oils, and abrasion, available in standard black or other colors.
-
Broad Specification Range: Available in conductor sizes from 0.75 mm² to 300 mm², with 1 to 37 cores.

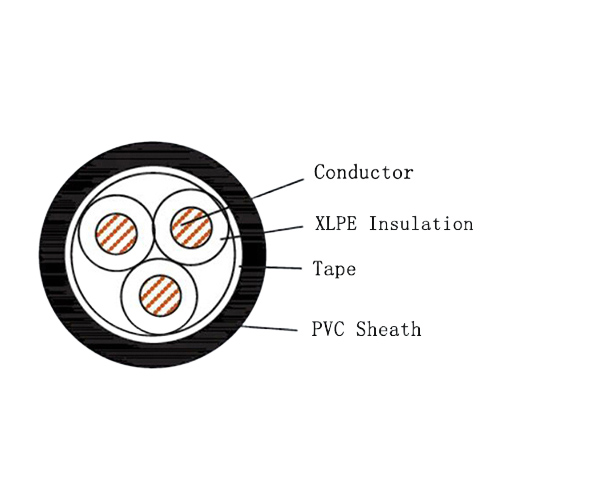

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned/Plain Stranded, Annealed Copper Wire |
| Insulation | J | XLPE Insulated |
| Sheath | V | PVC Sheath |
| Sheath Color | / | Black or other Color |
| Flammability | SA | Bunched Cables Flame Retardant |
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Maximum Continuous Operating Temperature: 90°C
-
Conductor Cross-Sectional Area Range: 0.75 mm² to 300 mm²
-
Number of Cores: 1 to 37 Cores
Applicable Standards
-
IEC 60092-350, 353 – Design
-
IEC 60228 – Conductors
-
IEC 60092-360 – Insulation and Sheath
-
IEC 60332-1 – Test for vertical flame propagation for a single insulated wire/cable
-
IEC 60332-3-22 – Test for vertical flame spread of bunched cables (Category A)
Typical Applications
-
Internal wiring on ships and offshore platforms in protected spaces
-
Lighting and low-voltage control circuits in marine environments
-
Industrial control panels and machinery wiring in non-harsh conditions
-
General power distribution in chemical, power, and mining plants where significant mechanical protection is not required
