CEV80/SA EPR Insulated Armored Marine Power Cable
Product Overview
The CEV80/SA is a copper wire braided armored marine power cable designed for circuits requiring enhanced mechanical protection. Featuring EPR insulation and a PVC inner sheath, it provides robust performance in demanding fixed installations both onboard vessels and in heavy industries.
Key Applications
-
Marine & Offshore: Fixed wiring for power, lighting, and control systems on ships, oil platforms, and offshore structures where mechanical protection is crucial.
-
Industrial Plants: Suitable for use in metallurgy, chemical plants, power stations, and mining operations, especially in areas with risk of impact or abrasion.
Compliance & Standards
This cable is manufactured in accordance with international marine and safety standards:
-
Design: IEC 60092-350, IEC 60092-353
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardancy: IEC 60332-1, IEC 60332-3-22 (Category A for bunched installation)

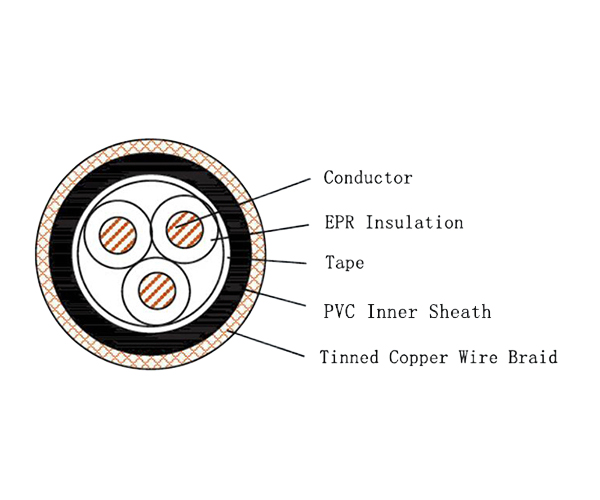

Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR (Ethylene Propylene Rubber) |
| Inner Sheath | V | PVC |
| Armor | 8 | Tinned or Plain Copper Wire Braid |
| Outer Sheath | 0 | None (Armor serves as the final layer) |
| Flammability | SA | Flame Retardant for Bunched Cables |
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Maximum Conductor Temperature: 90°C
-
Available Cross-Section: 0.75 mm² to 300 mm²
-
Core Configuration: 1 to 37 cores
