CEPJ/SC EPR Insulated Low-Smoke Halogen-Free Marine Power Cable
Product Overview
CEPJ/SC EPR Insulated Low-Smoke Halogen-Free Flame Retardant Marine Power Cable is engineered for critical power, lighting, and control circuits in demanding marine and industrial environments. This cable combines superior fire safety with robust durability, making it a preferred choice for offshore installations and hazardous industrial sectors.
Key Applications
-
Marine & Offshore: Power, lighting, and control systems for ships, oil platforms, and offshore structures.
-
Industrial Plants: Suitable for harsh environments in metallurgy, chemical processing, power generation, and mining industries.
Compliance & Standards
This cable is designed and tested to meet stringent international standards:
-
Design: IEC 60092-350, IEC 60092-353
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardancy: IEC 60332-1, IEC 60332-3-22

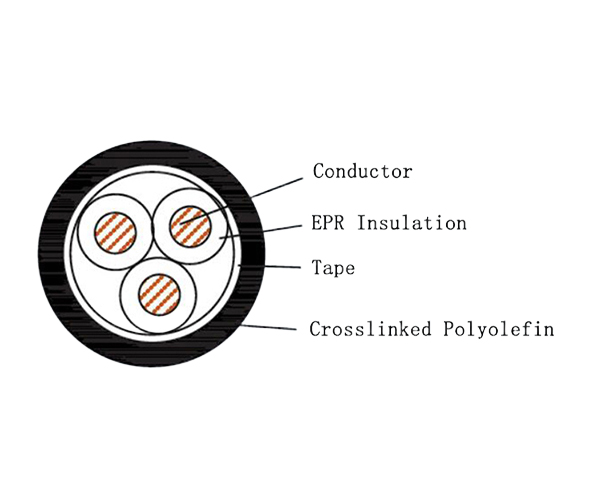

Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR (Ethylene Propylene Rubber) |
| Inner Sheath | PJ | Cross-linked Polyolefin (SHF2) |
| Sheath Color | / | Standard Black (Other colors available) |
| Flammability | SC | Halogen-Free, Low-Smoke, Flame Retardant |
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Maximum Conductor Temperature: 90°C
-
Available Cross-Section: 0.75 mm² to 300 mm²
-
Core Configuration: 1 to 37 cores
