CEV90/SA EPR Insulated Armored Marine Power Cable
Product Overview
The CEV90/SA is a heavy-duty marine power cable featuring galvanized steel wire braid armor. Engineered for environments requiring maximum mechanical protection, it combines robust construction with EPR insulation and flame-retardant properties, ensuring reliable power distribution in the most demanding fixed installations.
Key Applications
-
Marine & Offshore: Essential for power, lighting, and control circuits on ships, oil rigs, and offshore platforms, particularly in areas prone to impact, crushing, or requiring enhanced tensile strength.
-
Heavy Industry: Ideal for use in metallurgical plants, chemical processing facilities, power stations, and mining operations where cables are exposed to extreme physical stress and harsh conditions.
Compliance & Standards
Manufactured to comply with key international standards for marine electrical safety and performance:
-
Design: IEC 60092-350, IEC 60092-353
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardancy: IEC 60332-1, IEC 60332-3-22

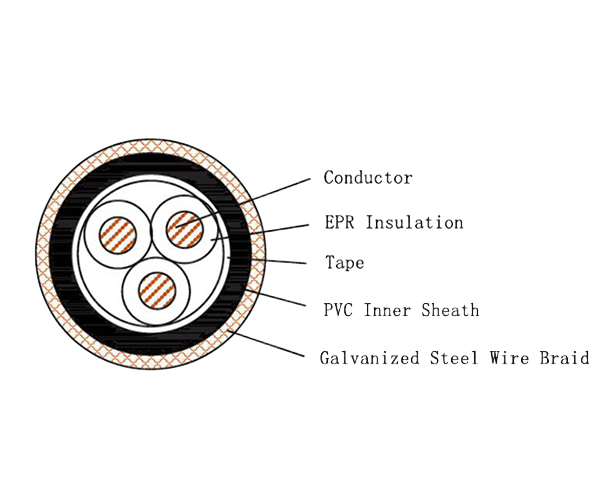

Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR (Ethylene Propylene Rubber) |
| Inner Sheath | V | PVC |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 0 | None (Armor is the final protective layer) |
| Flammability | SA | Flame Retardant for Bunched Cables |
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Maximum Continuous Operating Temperature: 90°C
-
Conductor Cross-Sectional Area Range: 0.75 mm² to 300 mm²
-
Core Number Range: 1 to 37 cores
