PVC Insulated PVC Sheathed 2C+E Unarmored Cable, 0.6/1kV – AS/NZS 5000.1

Low Voltage Power Cables
Description

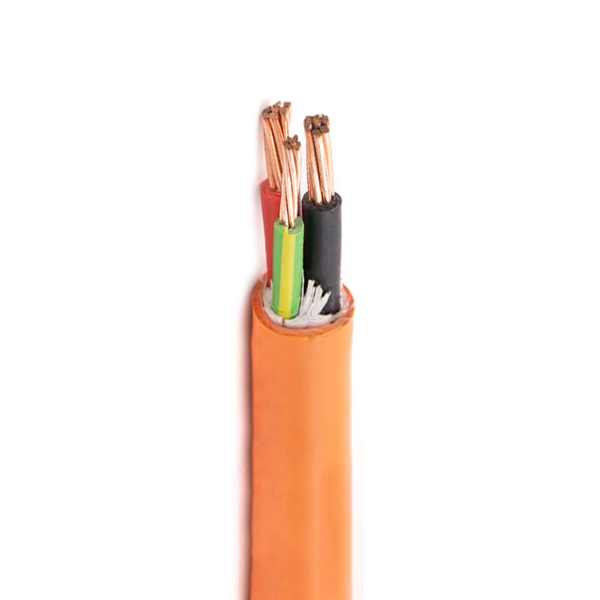

PVC Insulated, PVC Sheathed 2 Cores + E Unarmored Cable, 0.6/1kV

Product Overview

The PVC Insulated, PVC Sheathed 2 Cores + E Unarmored Cable is designed for low voltage power distribution in buildings and industrial plants. It is suitable for mains, submains, and subcircuits, both unenclosed and enclosed in conduit, as well as for direct burial or installation in underground ducts where the cable is not subject to mechanical damage.

The cable features plain annealed copper conductors, PVC V-90 insulation, and a PVC 5V-90 sheath. It is manufactured in accordance with AS/NZS 5000.1, AS/NZS 3008, AS/NZS 1125, and IEC 60502-1.

Applications

These cables are used for mains, submains, and subcircuits unenclosed, enclosed in conduit, buried direct, or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

Features & Benefits

  • Rated Voltage: 0.6/1kV

  • Configuration: 2 cores + earth (2C+E)

  • Conductor: Plain annealed copper

  • Insulation: PVC V-90 compound

  • Sheath: PVC 5V-90 compound

  • Insulation Colour: Red, Black, Green/Yellow

  • Sheath Colour: Black (other colours available upon request)

  • Installation Flexibility: Suitable for unenclosed, conduit, direct burial, and underground duct installation

  • Standards Compliance: AS/NZS 5000.1, AS/NZS 3008, AS/NZS 1125, IEC 60502-1

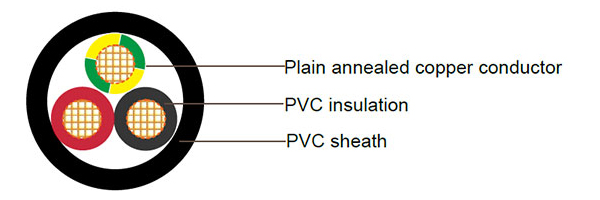

Construction

  • Conductor: Plain annealed copper

  • Insulation: Polyvinylchloride compound PVC V-90

  • Insulation Colour: 2C + E – Red, Black, Green/Yellow

  • Sheath: Polyvinylchloride compound PVC 5V-90

  • Sheath Colour: Black, other colours are available upon request

Technical Data

Table 1 – Current Ratings & Electrical Characteristics

Nominal Area (mm²) Unenclosed in Air (A) Buried Direct (A) Buried in Ducts (A) Max. DC Resistance @20°C (Ω/km) Max. AC Resistance @75°C (Ω/km) Reactance (Ω/km) Single Phase Voltage Drop @75°C (mV/A/m)
1.5 18 14 22 13.6 16.5 0.111 33.0
2.5 26 20 31 7.41 9.01 0.102 18.0
4 34 26 40 4.61 5.61 0.102 11.2
6 44 34 51 3.08 3.75 0.0967 7.50
10 60 47 68 1.83 2.23 0.0906 4.46
16 80 63 88 1.15 1.40 0.0861 2.81
25 105 88 115 0.727 0.884 0.0853 1.78
35 130 105 140 0.524 0.638 0.0826 1.28
50 160 125 165 0.387 0.471 0.0797 0.957
70 200 155 205 0.268 0.327 0.0770 0.673
95 250 190 250 0.193 0.236 0.0766 0.498

Table 2 – Dimensions & Mass

Nom. Conductor Area (mm²) Conductor No./OD Nom. Insulation Thickness (mm) Nom. Earth Conductor Area (mm²) Nom. Earth Conductor Insulation Thickness (mm) Nom. Overall Diameter (mm) Approx. Mass (kg/km)
1.5 7/0.50 0.8 1.5 0.6 10.6 160
2.5 7/0.67 0.8 2.5 0.7 11.6 220
4 7/0.85 1.0 2.5 0.7 13.1 295
6 7/1.04 1.0 2.5 0.7 14.2 335
10 7/1.35 1.0 4 1.0 15.9 440
16 7/1.70 1.0 6 1.0 17.9 620
25 7/2.14 1.2 6 1.0 21.6 840
35 7/2.65 1.2 10 1.0 22.8 1090
50 19/1.89 1.4 16 1.0 25.8 1465
70 19/2.24 1.4 25 1.2 30.4 1900
95 19/2.65 1.6 25 1.2 34.8 2500

Nominal values. Slight variations may occur within standard manufacturing tolerances.

Standards & Compliance

  • AS/NZS 5000.1 – Electric cables – Polymeric insulated

  • AS/NZS 3008 – Electrical installations – Selection of cables

  • AS/NZS 1125 – Conductors in insulated electric cables

  • IEC 60502-1 – Power cables with extruded insulation for rated voltages up to 1kV

Ordering Information

To request a quote or place an order, please provide the following information:

  • Product Type: PVC Insulated, PVC Sheathed 2 Cores + E Unarmored Cable

  • Rated Voltage: 0.6/1kV

  • Nominal Conductor Area: e.g., 1.5 mm², 2.5 mm², 4 mm², 6 mm², 10 mm², 16 mm², 25 mm², 35 mm², 50 mm², 70 mm², 95 mm²

  • Sheath Colour: Black (standard) or other colour upon request

  • Quantity: Total length in meters
