250°F / 121℃ PP/LEAD Flat Electrical Submersible Pump Cable
Product Overview
This medium-temperature, flat submersible pump cable combines polypropylene insulation with a durable lead jacket, engineered for reliable power transmission to submersible motors in down-well oil industry applications.
Key Applications
-
Transmitting electrical power to submersible motors in oil wells.
-
Designed for installation down-well in the oil and gas industry.
Compliance & Standards
This cable meets critical industry standards for performance and safety:
-
IEEE Std. 1019
-
API RP 11S5
-
API RP 11S6

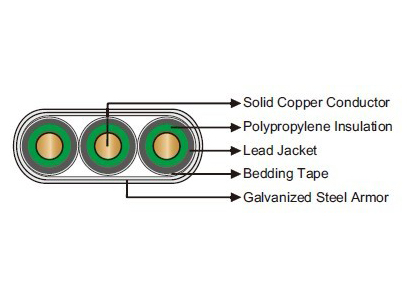

Cable Construction & Materials
-
Conductor: Solid bare copper conductor.
-
Insulation: Polypropylene insulation with a metal deactivator and poly adhesive layer bonded to the conductor.
-
Jacket: Lead jacket for superior fluid and environmental resistance.
-
Tape: Longitudinally applied, rubber-backed fabric bedding tape.
-
Armor: Galvanized steel tape for mechanical protection.
Technical Specifications
Rated Voltage: 5kV
| Cable Type | Conductor Size | Conductor O.D. | Insulation Thickness | Overall O.D. | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| AWG | mm² | Inches | mm | Inches | mm | Inches | mm | lbs/kft | kg/km | |
| QYPQ-121-5kV-3G4 | 4 | 21.1 | 0.20 | 5.2 | 0.09 | 2.3 | 1.60×0.62 | 40.6×15.7 | 1700 | 2529 |
| QYPQ-121-5kV-3G2 | 2 | 33.6 | 0.26 | 6.6 | 0.09 | 2.3 | 1.76×0.67 | 44.7×17.0 | 2100 | 3124 |
| QYPQ-121-5kV-3G1 | 1 | 42.4 | 0.29 | 7.4 | 0.09 | 2.3 | 1.85×0.70 | 47.0×17.8 | 2400 | 3571 |
Other conductor sizes can be offered upon request.
