176°F / 80℃ PP/HDPE Flat Electrical Submersible Pump Cable
Product Overview
This standard-temperature flat submersible pump cable features polypropylene insulation and a high-density polyethylene (HDPE) jacket, engineered for reliable power transmission to submersible motors in down-well oil industry applications.
Key Applications
-
Transmitting electrical power to submersible motors in oil wells
-
Designed for installation down-well in the oil and gas industry
Compliance & Standards
This cable meets critical industry standards for performance and safety:
-
IEEE Std. 1019
-
API RP 11S5
-
API RP 11S6

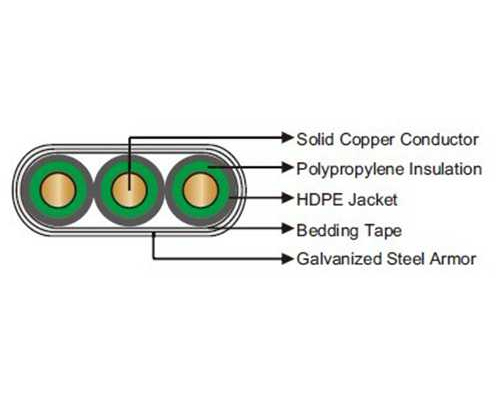

Cable Construction & Materials
-
Conductor: Solid bare copper conductor with poly adhesive layer
-
Insulation: Polypropylene insulation
-
Jacket: HDPE jacket
-
Tape: Helicoidally applied bedding tape
-
Armor: Galvanized steel armor
Technical Specifications
3KV Rated Cables
| Cable Type | Conductor Size | Conductor O.D. | Insulation Thickness | Overall O.D. | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| AWG | mm² | Inches | mm | Inches | mm | Inches | mm | lbs/kft | kg/km | |
| QYPH-80-3kV-3G6 | 6 | 13.3 | 0.16 | 4.1 | 0.075 | 1.9 | 1.5×0.6 | 39.2×14.4 | 850 | 1265 |
| QYPH-80-3kV-3G4 | 4 | 21.1 | 0.20 | 5.1 | 0.075 | 1.9 | 1.7×0.6 | 42.4×15.5 | 1060 | 1577 |
| QYPH-80-3kV-3G2 | 2 | 33.5 | 0.26 | 6.6 | 0.075 | 1.9 | 1.8×0.7 | 46.5×16.9 | 1360 | 2023 |
| QYPH-80-3kV-3G1 | 1 | 42.4 | 0.29 | 7.4 | 0.075 | 1.9 | 1.9×0.7 | 48.9×17.7 | 1560 | 2321 |
4KV Rated Cables
| Cable Type | Conductor Size | Conductor O.D. | Insulation Thickness | Overall O.D. | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| AWG | mm² | Inches | mm | Inches | mm | Inches | mm | lbs/kft | kg/km | |
| QYPH-80-4kV-3G6 | 6 | 13.3 | 0.16 | 4.1 | 0.08 | 2.1 | 1.6×0.6 | 40.4×14.8 | 880 | 1309 |
| QYPH-80-4kV-3G4 | 4 | 21.1 | 0.20 | 5.1 | 0.08 | 2.1 | 1.7×0.6 | 43.6×15.9 | 1090 | 1622 |
| QYPH-80-4kV-3G2 | 2 | 33.5 | 0.26 | 6.6 | 0.08 | 2.1 | 1.9×0.7 | 47.7×17.3 | 1390 | 2068 |
| QYPH-80-4kV-3G1 | 1 | 42.4 | 0.29 | 7.4 | 0.08 | 2.1 | 2.0×0.7 | 50.1×18.1 | 1590 | 2366 |
5KV Rated Cables
| Cable Type | Conductor Size | Conductor O.D. | Insulation Thickness | Overall O.D. | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| AWG | mm² | Inches | mm | Inches | mm | Inches | mm | lbs/kft | kg/km | |
| QYPH-80-5kV-3G6 | 6 | 13.3 | 0.16 | 4.1 | 0.09 | 2.3 | 1.6×0.6 | 41.6×15.2 | 910 | 1354 |
| QYPH-80-5kV-3G4 | 4 | 21.1 | 0.20 | 5.1 | 0.09 | 2.3 | 1.8×0.6 | 44.8×16.3 | 1120 | 1666 |
| QYPH-80-5kV-3G2 | 2 | 33.5 | 0.26 | 6.6 | 0.09 | 2.3 | 1.9×0.7 | 48.9×17.7 | 1420 | 2113 |
| QYPH-80-5kV-3G1 | 1 | 42.4 | 0.29 | 7.4 | 0.09 | 2.3 | 2.0×0.7 | 51.3×18.5 | 1620 | 2410 |
Other conductor sizes can be offered upon request.
