400°F / 204°C EPDM/EPDM Flat Electrical Submersible Pump Cable
Product Overview

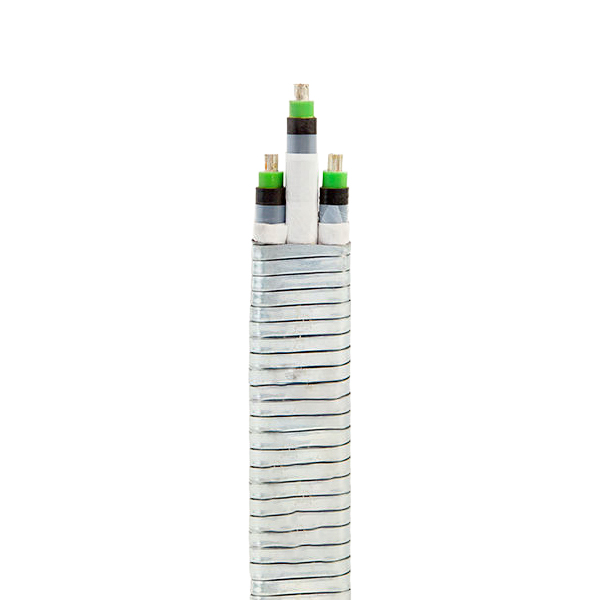

This high-temperature, flat submersible pump cable features a robust all-EPDM construction, engineered for reliable power transmission to submersible motors in demanding down-well oil industry applications.
Key Applications
-
Transmitting electrical power to submersible motors in oil wells.
-
Designed for installation down-well in the oil and gas industry.
Compliance & Standards
This cable is manufactured in accordance with critical industry standards for performance and safety:
-
IEEE Std. 1018
-
API RP 11S5
-
API RP 11S6
Cable Construction & Materials
-
Conductor: Solid or stranded copper conductor.
-
Insulation: EPDM insulation.
-
Jacket: EPDM rubber. Each insulated conductor is individually jacketed or three conductors are laid parallel within a common encapsulated jacket.
-
Barrier: Barrier tape and braid, used for fluid protection and hoop strength.
-
Armor: Galvanized steel.
Technical Specifications
3KV Rated Cables
| Cable Type | Conductor Size | Conductor O.D. | Insulation Thickness | Overall O.D. | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| AWG | mm² | Inches | mm | Inches | mm | Inches | mm | lbs/kft | kg/km | |
| QYEE-204-3kV-3G10S | – | 10 | 0.14 | 3.556 | 0.075 | 1.9 | 1.55×0.54 | 39.3×13.8 | 793 | 1180 |
| QYEE-204-3kV-3G6 | 6 | 13.3 | 0.162 | 4.115 | 0.075 | 1.9 | 1.64×0.57 | 41.6×14.5 | 901 | 1341 |
| QYEE-204-3kV-3G16S | – | 16 | 0.178 | 4.521 | 0.075 | 1.9 | 1.70×0.59 | 43.3×15.1 | 985 | 1466 |
| QYEE-204-3kV-3G4 | 4 | 21.1 | 0.204 | 5.182 | 0.075 | 1.9 | 1.81×0.63 | 46.0×16.0 | 1134 | 1688 |
| QYEE-204-3kV-3G25S | – | 25 | 0.222 | 5.639 | 0.075 | 1.9 | 1.89×0.66 | 47.9×16.6 | 1245 | 1853 |
| QYEE-204-3kV-3G2 | 2 | 33.6 | 0.258 | 6.553 | 0.075 | 1.9 | 2.03×0.71 | 51.7×17.9 | 1487 | 2213 |
| QYEE-204-3kV-3G1 | 1 | 42.4 | 0.289 | 7.341 | 0.075 | 1.9 | 2.16×0.75 | 54.9×19.0 | 1717 | 2555 |
| QYEE-204-3kV-3G1/0 | 1/0 | 53.5 | 0.368 | 9.347 | 0.075 | 1.9 | 2.49×0.86 | 63.2×21.8 | 2390 | 3557 |
| QYEE-204-3kV-3G2/0 | 2/0 | 67.4 | 0.414 | 10.516 | 0.075 | 1.9 | 2.68×0.92 | 68.1×23.4 | 2841 | 4229 |
5KV Rated Cables
| Cable Type | Conductor Size | Conductor O.D. | Insulation Thickness | Overall O.D. | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| AWG | mm² | Inches | mm | Inches | mm | Inches | mm | lbs/kft | kg/km | |
| QYEE-204-5kV-3G10S | – | 10 | 0.14 | 3.556 | 0.09 | 2.3 | 1.68×0.59 | 42.6×14.9 | 865 | 1287 |
| QYEE-204-5kV-3G6 | 6 | 13.3 | 0.162 | 4.115 | 0.09 | 2.3 | 1.77×0.62 | 44.9×15.6 | 975 | 1451 |
| QYEE-204-5kV-3G16S | – | 16 | 0.178 | 4.521 | 0.09 | 2.3 | 1.83×0.64 | 46.6×16.2 | 1061 | 1579 |
| QYEE-204-5kV-3G4 | 4 | 21.1 | 0.204 | 5.182 | 0.09 | 2.3 | 1.94×0.67 | 49.3×17.1 | 1212 | 1804 |
| QYEE-204-5kV-3G25S | – | 25 | 0.222 | 5.639 | 0.09 | 2.3 | 2.02×0.70 | 51.2×17.7 | 1325 | 1971 |
| QYEE-204-5kV-3G2 | 2 | 33.6 | 0.258 | 6.553 | 0.09 | 2.3 | 2.17×0.75 | 55.0×19.0 | 1570 | 2336 |
| QYEE-204-5kV-3G1 | 1 | 42.4 | 0.289 | 7.341 | 0.09 | 2.3 | 2.29×0.79 | 58.3×20.1 | 1802 | 2682 |
| QYEE-204-5kV-3G1/0 | 1/0 | 53.5 | 0.368 | 9.347 | 0.09 | 2.3 | 2.62×0.90 | 66.6×22.9 | 2483 | 3696 |
| QYEE-204-5kV-3G2/0 | 2/0 | 67.4 | 0.414 | 10.516 | 0.09 | 2.3 | 2.81×0.96 | 71.4×24.5 | 2939 | 4374 |
Other conductor sizes can be offered upon request.
