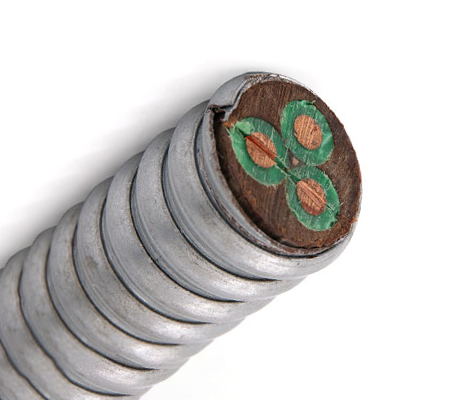

EPDM Insulated and Lead/EPDM Sheathed, Galvanized Steel Strip Armoring, Round Cable for Submersible Oil Pump
Product Overview
This round cable is specifically engineered to provide power for electric submersible pump (ESP) systems in oil extraction. The conductor maintains continuous operation at temperatures not exceeding 232°C (450°F), ensuring long-term durability in high-thermal downhole environments.
Standards Compliance:
-
API RP11S5
-
API RP11S6
-
IEEE 1018
Specifications
| Feature | Performance |
|---|---|
| Medium Voltage | 3kV / 5kV |
| Water Resistance | ✓ |
| Cold Resistant | Down to -40°C |
| Oil Resistance | ✓ |
Construction
The cable incorporates multiple robust layers to withstand mechanical stress, high temperatures, and corrosive downhole fluids.
-
Conductor
-
EPDM Insulation
-
Lead Sheath
-
Nylon Fabric
-
Filler
-
EPDM Sheath
-
Galvanized Steel Strip Armor
Technical Parameters
3kV Round Cables
| Type | Conductor specification | EPDM insulation | LEAD sheath | EPDM shealth | Finished size ≤ mm |
calculated weight kg/m |
|||||
| AWG | Area mm2 |
Outer diameter mm | Thickness mm |
Outer diameter mm | Thickness mm |
Outer diameter mm | Thickness mm |
Outer diameter mm | |||
| 6EP3LDEPGR | 6 | 13 | 4.12 | 1.7 | 7.92 | 0.75 | 9.12 | 1.52 | 23.71 | 28.61 | 2.03 |
| 4EP3LDEPGR | 4 | 20 | 5.19 | 1.7 | 8.99 | 0.75 | 10.19 | 1.52 | 26.01 | 30.92 | 2.44 |
| 2EP3LDEPGR | 2 | 33 | 6.54 | 1.7 | 10.34 | 0.75 | 11.54 | 1.52 | 28.92 | 33.82 | 3.02 |
| 1EP3LDEPGR | 1 | 42 | 7.35 | 1.7 | 11.15 | 0.75 | 12.35 | 1.52 | 30.66 | 35.57 | 3.40 |
5kV Round Cables
| Type | Conductor specification | EPDM insulation | LEAD sheath | EPDM sheath | Finished size ≤ mm |
calculated weight kg/m | |||||
| AWG | Area mm2 |
Outer diameter mm | Thickness mm |
Outer diameter mm | Thickness mm |
Outer diameter mm | Thickness mm |
Outer diameter mm |
|||
| 6EP5LDEPGR | 6 | 13 | 4.12 | 1.9 | 7.92 | 0.75 | 9.52 | 1.52 | 24.57 | 30.50 | 2.12 |
| 4EP5LDEPGR | 4 | 20 | 5.19 | 1.9 | 8.99 | 0.75 | 10.59 | 1.52 | 26.87 | 32.78 | 2.59 |
| 2EP5LDEPGR | 2 | 33 | 6.54 | 1.9 | 10.34 | 0.75 | 11.94 | 1.52 | 29.78 | 35.70 | 3.11 |
| 1EP5LDEPGR | 1 | 42 | 7.35 | 1.9 | 11.15 | 0.75 | 12.75 | 1.52 | 31.53 | 37.43 | 3.50 |
