F-(N)TSCGEWÖU Medium Voltage Cable 3.6/6 kV to 18/30 kV – Flexible, EPR Insulated, Oil & UV Resistant – DIN VDE 0250

Machinery & Equipment Mining Cables
Description

Product Overview

This medium voltage power cable, designated F-(N)TSCGEWÖU, is engineered for demanding industrial environments requiring reliable power transmission. It is specifically designed for installation alongside conveyor belts, on material handling equipment, and for connection to submersible pump units. The cable meets rigorous German industrial standard DIN VDE 0250 part 813 and incorporates advanced thermosetting compounds for exceptional mechanical and environmental performance.

Application

  • Laying alongside conveyor belts and on material handling equipment.

  • Connection of submersible pump units.

  • Other industrial applications requiring medium voltage flexible cables.

Standards

  • DIN VDE 0250 p. 813 (German standard for insulated power cables)

Characteristics

  • Mechanical Robustness: Excellent tear, impact, and abrasion resistance.

  • Fire Safety: Flame retardant.

  • Temperature Range: -25°C to +90°C (for fixed installation, lowest temperature is -40°C).

  • Environmental Resistance: UV, sunlight, ozone, and oil resistant.

  • Flexible Construction: Suitable for dynamic applications.

Specifications

Parameter Details
Voltage Rating 3.6/6 kV to 18/30 kV
Cold Resistance -25°C (dynamic)
UV Resistance Yes
Medium Voltage Yes
Working Temperature 90°C
Oil Resistance Yes
Flame Retardant Yes

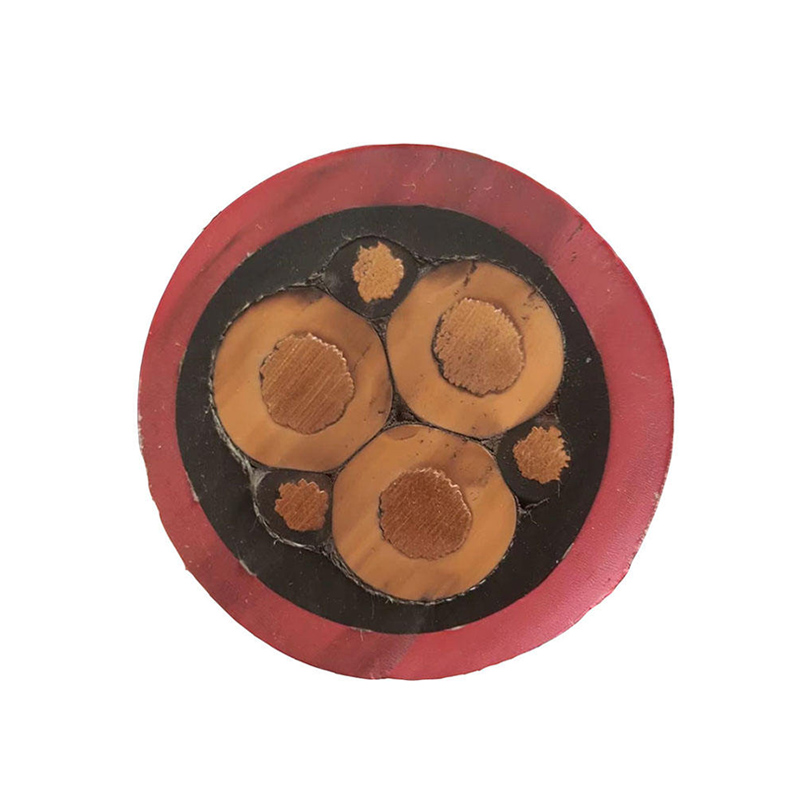

Construction

The cable is constructed with precise layers to ensure optimal electrical and mechanical performance:

  1. Conductor: Annealed flexible stranded tin coated or bare copper, Class 5 to IEC 60228 / HD 383. (Note: original text shows "sAnnealed" – corrected to "Annealed" for clarity).

  2. Conductor Screen: Semi-conductive layer applied over the conductor.

  3. Separator: If needed, a suitable semi-conductive tape between conductor and insulation.

  4. Insulation: High-grade EPR (Ethylene Propylene Rubber) thermosetting compound, exceeding parameters of type 3GI3 to DIN VDE 0207 part 20.

  5. Insulation Screen: Semi-conductive layer with maximum resistivity of 200 Ω·m.

  6. Internal Layer of Sheath: A synthetic thermosetting compound.

  7. Outer Layer of Sheath: A synthetic thermosetting compound, type 5GM5 or 5GM3 to DIN VDE 0207 part 21.

  8. Colour of Outer Jacket: Red (other colours available upon request).
