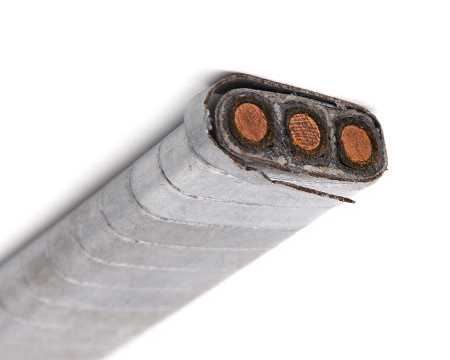

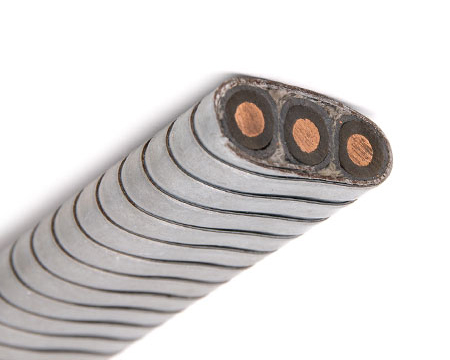

EPDM Insulated and Lead Sheathed, Galvanized Steel Strip Armoring, Flat Cable for Submersible Oil Pump

Product Overview

This flat power cable is specifically designed for electric submersible pump (ESP) applications in oil extraction. The conductor operates continuously at temperatures not exceeding 232°C (450°F), ensuring durability in high-thermal environments.

Standards Compliance:

  • API RP11S5

  • API RP11S6

  • IEEE 1018

Specifications

Feature Performance
Medium Voltage 3kV / 5kV
Water Resistance ✓
Cold Resistant Down to -40°C
Oil Resistance ✓

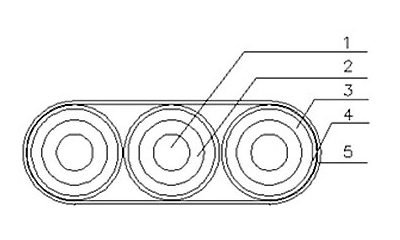

Construction

The cable is built with robust layers to withstand mechanical stress, high temperatures, and corrosive downhole fluids.

  1. Conductor

  2. EPDM Insulation

  3. Lead Sheath

  4. Glass Fiber Cloth

  5. Galvanized Steel Strip Armor

Technical Parameters

3kV Flat Cables

Type Conductor specification EPDM insulation LEAD sheath Finished size
≤		 calculated weight
kg/m
AWG Area
mm2		 Outer diameter mm Thickness
mm		 Outer diameter mm Thickness
mm		 Outer diameter mm Thickness
mm		 Width
mm
6EP3LDGF 6 13 4.12 1.7 7.52 0.76 9.12 13.14 32.72 1.7
4EP3LDGF 4 20 5.19 1.7 8.59 0.76 10.19 14.21 35.93 2.1
2EP3LDGF 2 33 6.54 1.7 9.94 0.76 11.54 15.56 40.00 2.6
1EP3LDGF 1 42 7.35 1.7 10.75 0.76 12.35 16.37 42.41 3.0

5kV Flat Cables

Type Conductor specification EPDM insulation LEAD sheath Finished size
≤		 calculated weight
kg/m
AWG Area
mm2		 Outer diameter mm Thickness
mm		 Outer diameter mm Thickness

mm

 Outer diameter
mm		 Thickness
mm		 Width
mm
6EP5LDGF 6 13 4.12 1.9 7.92 0.76 9.52 12.54 34.00 1.85
4EP5LDGF 4 20 5.19 1.9 8.99 0.76 10.59 14.61 37.13 2.23
2EP5LDGF 2 33 6.54 1.9 10.34 0.76 11.94 15.96 41.00 2.77
1EP5LDGF 1 42 7.35 1.9 11.15 0.76 14.75 16.80 43.60 3.14
