450°F / 232°C EPDM/LEAD Flat Electrical Submersible Pump Cable
Product Overview
This high-temperature, flat submersible pump cable is engineered for reliable power transmission to submersible motors in demanding oil industry applications, specifically designed for installation down-well.
Key Applications
-
Transmitting electrical power to submersible motors in oil wells.
-
Ideal for down-well installations in the oil and gas industry.
Compliance & Standards
This cable is manufactured in accordance with critical industry standards for performance and safety:
-
IEEE Std. 1018
-
API RP 11S5
-
API RP 11S6

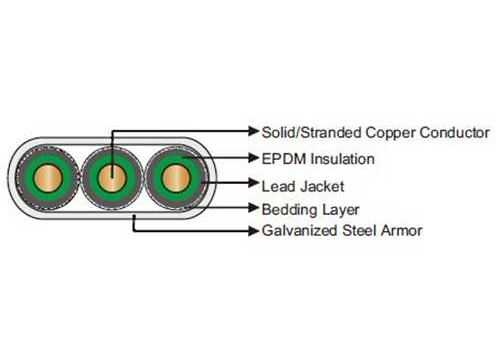

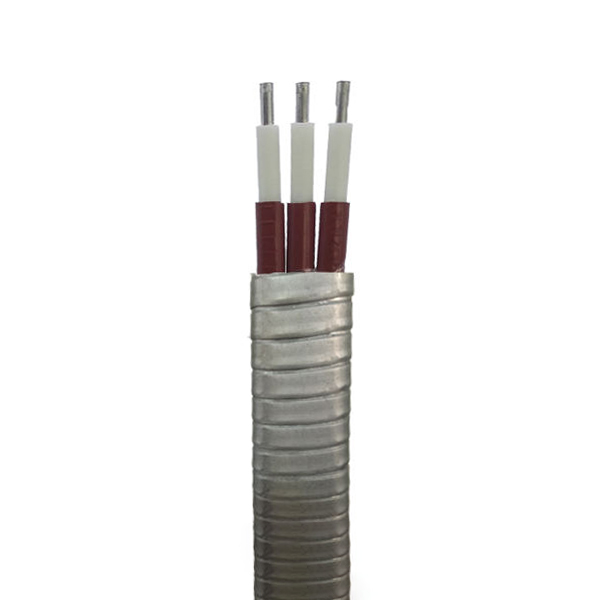

Cable Construction & Materials
-
Conductor: Solid bare copper.
-
Insulation: EPDM with a poly adhesive layer bonded to the conductor.
-
Jacket: Lead jacket for superior environmental and fluid resistance.
-
Tape: Longitudinally applied, rubber-backed fabric bedding tape.
-
Armor: Galvanized steel tape for mechanical protection.
Technical Specifications
Rated Voltage: 5kV
| Cable Type | Conductor Size | Conductor O.D. | Insulation Thickness | Overall O.D. | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| AWG | mm² | Inches | mm | Inches | mm | Inches | mm | lbs/kft | kg/km | |
| QYEQ-232-5kV-3G4 | 4 | 21.1 | 0.20 | 5.2 | 0.08 | 2.0 | 1.47×0.59 | 37.3×15.1 | 1478 | 2200 |
| QYEQ-232-5kV-3G2 | 2 | 33.6 | 0.26 | 6.6 | 0.08 | 2.0 | 1.63×0.64 | 41.4×16.3 | 1882 | 2800 |
| QYEQ-232-5kV-3G1 | 1 | 42.4 | 0.29 | 7.4 | 0.08 | 2.0 | 1.73×0.67 | 43.9×17.0 | 2083 | 3100 |
Other conductor sizes can be offered upon request.
