H05G-U / H07G-U/R German Standard Industrial Cable – VDE 0282

Low Voltage Power Cables
Description

H05G-U / H07G-U/R German Standard Industrial Cable

Product Overview

The H05G-U, H07G-U and H07G-R are German standard industrial cables recommended for the internal wiring of switchboards and distributor boards, as well as in operating parts in or on lights. The higher temperature range allows for connections to heaters with an alternating nominal voltage of 1000V or direct nominal voltage of 750V. These cables are all allowed for laying in tubes in and under plaster.

The cables are manufactured to <HAR> HD 22.7 S2, VDE-0282 Part-7, CEI 20-19/7, CEI 20-35 (EN60332-1), and comply with the CE Low Voltage Directive 73/23/EEC and 93/68/EEC. They are also ROHS compliant.

Key Features & Benefits

  • High Temperature Range: Flexing temperature -25°C to +110°C; static temperature -40°C to +110°C.

  • Flame Retardant: Complies with IEC 60332.1.

  • Rubber Insulation: Rubber compound type EI3 (EVA) to DIN VDE 0282 part 7.

  • Flexible Construction: Solid bare copper or stranded conductors to VDE-0295 Class-1/2, IEC 60228 Class-1/2.

  • Voltage Ratings: 300/500V (H05G-U); 450/750V (H07G-U/R).

  • Test Voltage: 2000V (H05G-U); 2500V (H07G-U/R).

  • Insulation Resistance: 10 MΩ x km.

  • Short Circuit Temperature: +160°C.

  • ROHS Compliant: Meets environmental and health requirements.

  • Standard Compliant: <HAR> HD 22.7 S2, VDE-0282 Part-7, CEI 20-19/7.

Typical Applications

  • Internal wiring of switchboards and distributor boards

  • Operating parts in or on lights

  • Connections to heaters with alternating nominal voltage of 1000V or direct nominal voltage of 750V

  • Laying in tubes in and under plaster

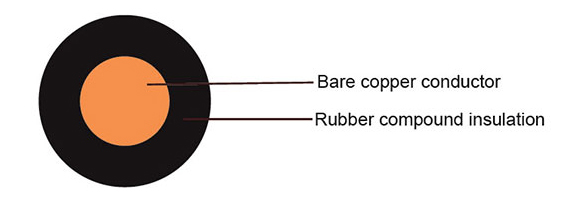

Construction Details

  • Conductor: Solid bare copper / strands

  • Stranding: VDE-0295 Class-1/2, IEC 60228 Class-1/2

  • Insulation: Rubber compound type EI3 (EVA) to DIN VDE 0282 part 7

  • Core Colours: Cores to VDE-0293 colours

Technical Specifications

Electrical & Thermal Characteristics

Parameter H05G-U H07G-U/R
Working Voltage 300/500V 450/750V
Test Voltage 2000 volts 2500 volts
Flexing Bending Radius 7 x Ø 7 x Ø
Static Bending Radius 7 x Ø 7 x Ø
Flexing Temperature -25°C to +110°C -25°C to +110°C
Static Temperature -40°C to +110°C -40°C to +110°C
Short Circuit Temperature +160°C +160°C
Flame Retardant IEC 60332.1 IEC 60332.1
Insulation Resistance 10 MΩ x km 10 MΩ x km

Parameter Table – H05G-U / H07G-U/R

AWG No. of Cores x Nominal Cross Sectional Area (mm²) Nominal Thickness of Insulation (mm) Nominal Overall Diameter (mm) Nominal Copper Weight (kg/km) Nominal Weight (kg/km)
H05G-U
20 1 x 0.5 0.6 2.1 4.8 9
18 1 x 0.75 0.6 2.3 7.2 12
17 1 x 1 0.6 2.5 9.6 15
H07G-U
16 1 x 1.5 0.8 3.1 14.4 21
14 1 x 2.5 0.9 3.6 24 32
12 1 x 4 1.0 4.3 38 49
H07G-R
10 (7/18) 1 x 6 1.0 5.2 58 70
8 (7/16) 1 x 10 1.2 6.5 96 116
6 (7/14) 1 x 16 1.2 7.5 154 173
4 (7/12) 1 x 25 1.4 9.2 240 268
2 (7/10) 1 x 35 1.4 10.3 336 360
1 (19/13) 1 x 50 1.6 12.0 480 487

Note: All values are nominal as provided in the source specification. Actual dimensions and weights may vary within standard manufacturing tolerances.

Standards & Compliance

  • <HAR> HD 22.7 S2

  • VDE-0282 Part-7

  • CEI 20-19/7

  • CEI 20-35 (EN60332-1)

  • CE Low Voltage Directive 73/23/EEC and 93/68/EEC

  • ROHS Compliant

Ordering Information

To request a quote or place an order, please provide the following information:

  • Product Type: H05G-U, H07G-U, or H07G-R

  • Voltage Rating: 300/500V (H05G-U) or 450/750V (H07G-U/R)

  • Conductor Size: e.g., 1 x 0.5 mm², 1 x 1.5 mm², 1 x 50 mm²

  • Conductor: Solid bare copper or stranded

  • Insulation: Rubber compound type EI3 (EVA)

  • Quantity: Total length in meters
