German Standard Industrial Cable H03V2V2-F / H03V2V2H2-F
Product Overview
The H03V2V2-F and H03V2V2H2-F are German standard industrial cables designed for domestic premises, kitchens, offices, and light service or light portable apparatuses. With their special insulation and sheath compounds, these cables are adapted for apparatus in kitchens and heating, and for use in zones with high temperatures (such as lighting system apparatuses) without contact with warm parts and radiation.
They are unsuitable for outdoor use, in industrial and agricultural buildings, or for non-domestic portable tools. The maximum conductor temperature in normal use is 90°C. While high-temperature use, skin contact must be avoided.
The cables are manufactured to <HAR> HD 21.12; HD 308 S2, DIN VDE 0281 part 1, part 12; DIN VDE 0293 part 308; DIN VDE 0295, CEI 20-20/12, CEI 20-35 (EN60332-1) / CEI 20-37 (EN50267), EN50265-2-1.
Key Features & Benefits
-
High Temperature Resistance: Suitable for zones with high temperatures, up to 90°C conductor temperature.
-
Flame Retardant: Complies with IEC 60332.1.
-
Flexible: Bare copper fine wire conductor, stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383.
-
Special PVC Compounds: PVC core insulation T13 and PVC outer jacket TM3 for enhanced thermal performance.
-
Cold Resistant: Static temperature down to -40°C.
-
Voltage Rating: 300/300V.
-
Test Voltage: 3000V.
-
Insulation Resistance: 20 MΩ x km.
-
Short Circuit Temperature: +160°C.
-
Standard Compliant: <HAR> HD 21.12, DIN VDE 0281, and related standards.
Typical Applications
-
Domestic premises
-
Kitchens and offices
-
Light service or light portable apparatuses
-
Apparatus in kitchens and heating
-
High-temperature zones (e.g., lighting system apparatuses) without contact with warm parts and radiation
Not suitable for: Outdoor use, industrial and agricultural buildings, or non-domestic portable tools.

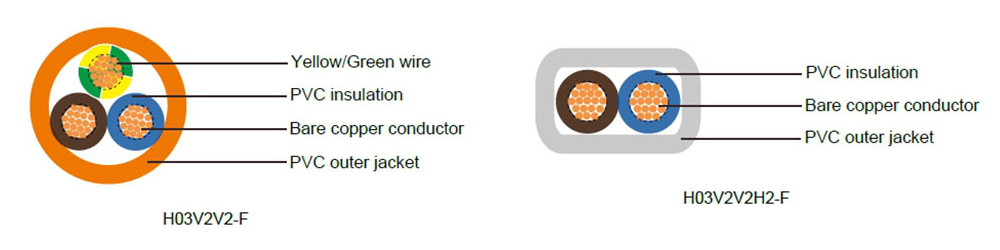

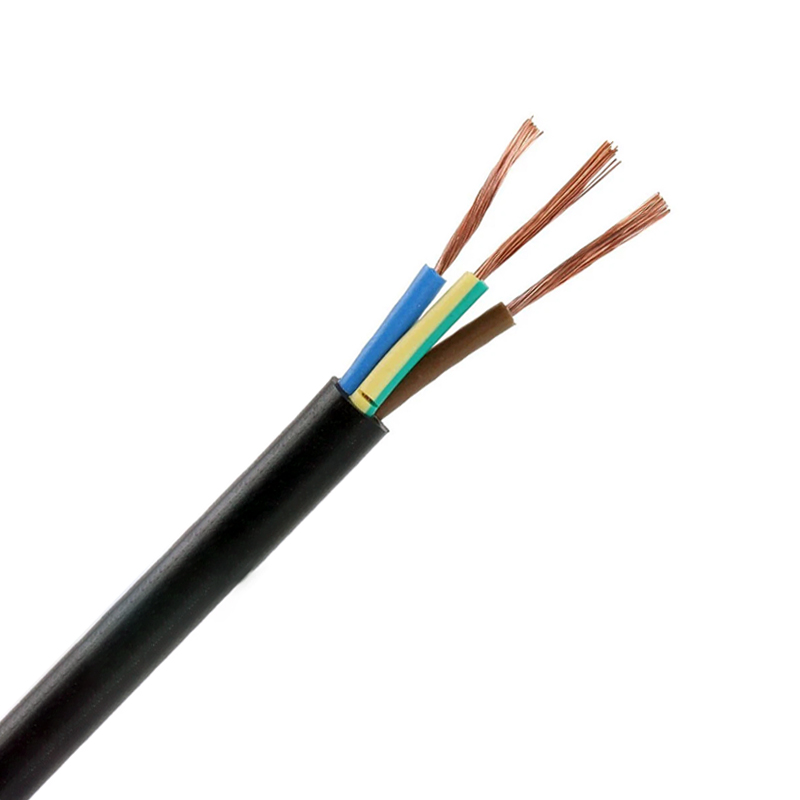

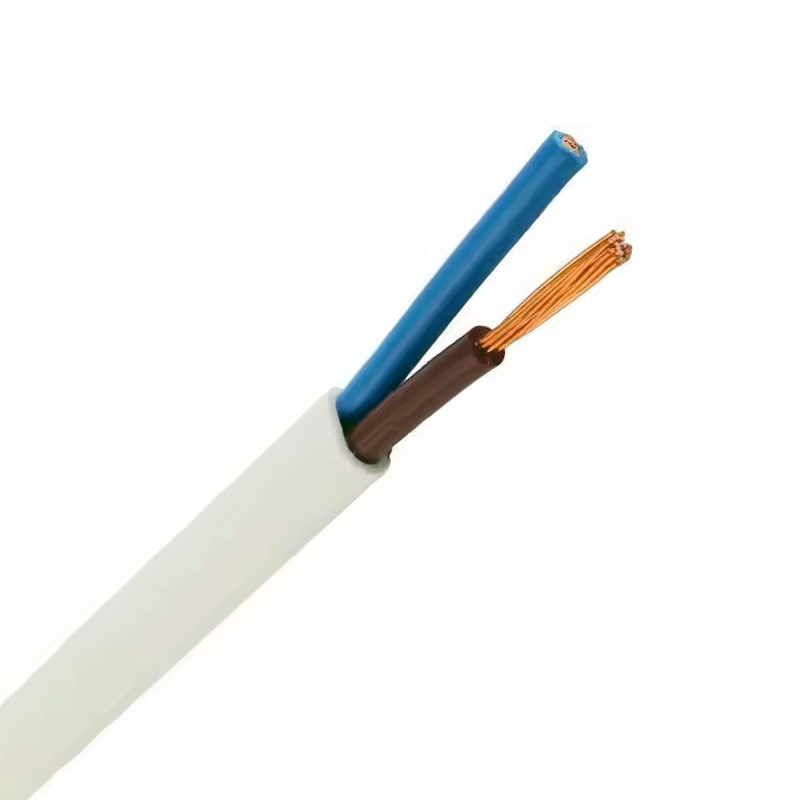

Construction Details
-
Conductor: Bare copper fine wire conductor
-
Stranding: DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383
-
Insulation: PVC core insulation T13 to VDE-0281 Part 1
-
Colour Code: VDE-0293-308
-
Outer Jacket: PVC outer jacket TM3
Technical Specifications
Electrical & Thermal Characteristics
| Parameter | Value |
|---|---|
| Working Voltage | 300/300 volts |
| Test Voltage | 3000 volts |
| Flexing Bending Radius | 15 x Ø |
| Static Bending Radius | 4 x Ø |
| Flexing Temperature | +5°C to +90°C |
| Static Temperature | -40°C to +90°C |
| Short Circuit Temperature | +160°C |
| Flame Retardant | IEC 60332.1 |
| Insulation Resistance | 20 MΩ x km |
| Maximum Conductor Temperature (Normal Use) | 90°C |
Parameter Table – H03V2V2-F (Round)
| AWG | No. of Cores x Nominal Cross Sectional Area (mm²) | Nominal Thickness of Insulation (mm) | Nominal Thickness of Sheath (mm) | Nominal Overall Diameter (mm) | Nominal Copper Weight (kg/km) | Nominal Weight (kg/km) |
|---|---|---|---|---|---|---|
| 20 (16/32) | 2 x 0.50 | 0.5 | 0.6 | 5 | 9.6 | 38 |
| 20 (16/32) | 3 x 0.50 | 0.5 | 0.6 | 5.4 | 14.4 | 45 |
| 20 (16/32) | 4 x 0.50 | 0.5 | 0.6 | 5.8 | 19.2 | 55 |
| 18 (24/32) | 2 x 0.75 | 0.5 | 0.6 | 5.5 | 14.4 | 46 |
| 18 (24/32) | 3 x 0.75 | 0.5 | 0.6 | 6 | 21.6 | 59 |
| 18 (24/32) | 4 x 0.75 | 0.5 | 0.6 | 6.5 | 28.8 | 72 |
Parameter Table – H03V2V2H2-F (Flat)
| AWG | No. of Cores x Nominal Cross Sectional Area (mm²) | Nominal Thickness of Insulation (mm) | Nominal Thickness of Sheath (mm) | Nominal Overall Diameter (mm) | Nominal Copper Weight (kg/km) | Nominal Weight (kg/km) |
|---|---|---|---|---|---|---|
| 20 (16/32) | 2 x 0.50 | 0.5 | 0.6 | 3.2 x 5.2 | 9.7 | 32 |
| 18 (24/32) | 2 x 0.75 | 0.5 | 0.6 | 3.4 x 5.6 | 14.4 | 35 |
Note: All values are nominal as provided in the source specification. Actual dimensions and weights may vary within standard manufacturing tolerances.
Standards & Compliance
-
<HAR> HD 21.12
-
HD 308 S2
-
DIN VDE 0281 Part 1, Part 12
-
DIN VDE 0293 Part 308
-
DIN VDE 0295
-
CEI 20-20/12
-
CEI 20-35 (EN60332-1) / CEI 20-37 (EN50267)
-
EN50265-2-1
Ordering Information
To request a quote or place an order, please provide the following information:
-
Product Type: H03V2V2-F (Round) or H03V2V2H2-F (Flat)
-
Voltage Rating: 300/300V
-
Number of Cores and Cross-Section: e.g., 2 x 0.50 mm², 3 x 0.75 mm²
-
Conductor: Bare copper fine wire
-
Insulation: PVC T13
-
Outer Jacket: PVC TM3
-
Quantity: Total length in meters
