Product Overview

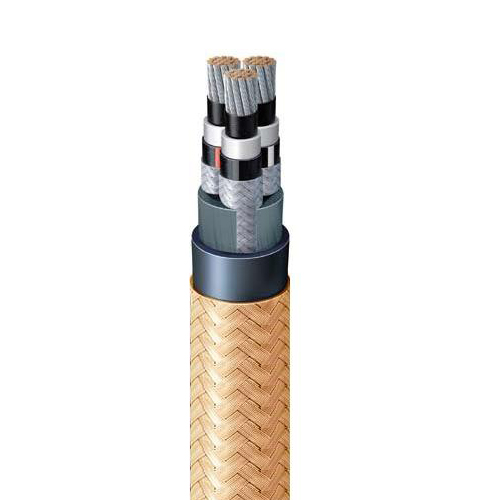

8kV TENB Offshore Power Cable is an IEEE 1580 standard compliant high-voltage cable specifically engineered for harsh marine environments. Designed for electrical power transmission on drilling vessels and offshore platforms, this cable features exceptional cold and high-temperature resistance with robust bronze armor protection.
Applications
-
Drilling ships and platforms (Jack-up, semi-submersible)
-
Production platforms (TLP, Semi-submersible, SPAR, Fixed platforms)
-
FPSO/FSO vessels
-
Offshore power distribution systems
-
Marine vessel electrical networks
-
Harsh environment offshore power transmission
Key Features
-
IEEE 1580 Compliant: Meets stringent offshore cable standards
-
Temperature Resistant: Suitable for both cold and high-temperature environments
-
Robust Construction: Bronze wire armor for mechanical protection
-
Flexible Design: Stranded tinned copper conductors for ease of installation
-
Flame Retardant: Enhanced safety for offshore applications
-
Non-Hygroscopic: Resists moisture absorption in marine environments
Standards Compliance
-
IEEE 1580 - Standard for Marine Cable
-
UL 1072 - Standard for Medium-Voltage Power Cables
-
UL 1309 - Standard for Marine Shipboard Cables
Construction Details
| Component | Code | Specification |
|---|---|---|
| Conductor | T | Flexible stranded tinned annealed copper wires per IEEE 1580 |
| Conductor Screen | Semi-conducting layer (tape/compound) | |
| Insulation | E | EPR (Type E) per IEEE 1580, UL 1072 & UL 1309 |
| Insulation Screen | Non-metallic: Semi-conducting layer (tape/compound) Metallic: Braid of tinned annealed copper wire Suitable separator tape(s) may be applied over metallic part |
|
| Cabling | Three metallic braided conductors cabled together Flame retardant & non-hygroscopic fillers may be used Suitable tape(s) may be applied on cabled core Filler may be applied to obtain circular cable |
|
| Jacket | N | Thermosetting Neoprene (Type N) per IEEE 1580, UL 1072 & UL 1309 |
| Armor | B | Braid of commercial bronze wires Suitable separator tape(s) may be applied under/over armor |
Additional Features
-
Environmental Resistance: Designed for offshore marine conditions
-
Safety Certified: Compliant with multiple international standards
-
Durable Protection: Bronze armor provides corrosion resistance
-
Reliable Performance: Tested for offshore power applications
