Description

Product Overview

XLPE Insulated AC Medium-voltage Submarine Cables with Integrated Fibre Optic Elements provide dual-functionality for simultaneous power transmission and data communication to offshore islands, oil platforms, and river/lake crossings. These composite cables feature robust construction with XLPE insulation, aluminium-PE laminated sheath, and galvanized steel armour, delivering reliable performance in demanding subsea environments.

Applications

  • Power and data transmission to offshore islands

  • Oil and gas platform power and communication systems

  • River and lake crossings with data connectivity

  • Submarine power distribution with monitoring capability

  • Offshore renewable energy connections with data transmission

  • Integrated power and communication infrastructure

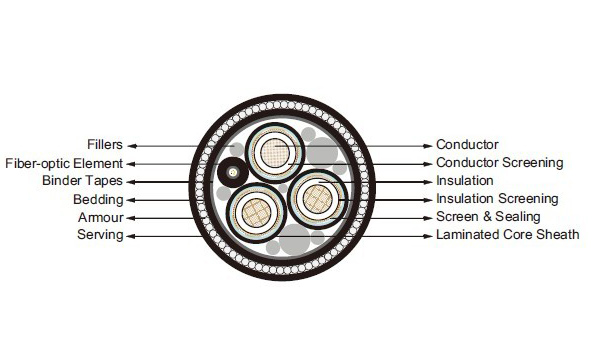

Construction

XLPE Insulated AC Medium-Voltage Submarine Cable with Fibre Optic | Offshore Power & Data Transmission

  • Conductor: Copper conductor, circular stranded compacted, water blocked

  • Conductor Screening: Extruded semi-conductive compound

  • Insulation: XLPE

  • Insulation Screening: Extruded semi-conductive compound

  • Screen: Copper wires and copper helix, swelling powder

  • Laminated Core Sheath: Aluminium tape bonded to overlaying PE sheath

  • Fillers: Polypropylene filler

  • Fibre-optic Element: Fibre optic cable

  • Separator: Binder tapes

  • Bedding Layer: Polypropylene strings

  • Armour: Galvanized steel wires

  • Serving: Hessian tapes, bituminous compound, polypropylene strings

Electrical Data

6/10(12) kV

Cross Section (mm²) Capacitance (μF/km) Inductance (mH/km) Current Rating (A)
35 0.23 0.43 167
50 0.26 0.41 199
70 0.29 0.38 241
95 0.32 0.37 288
120 0.35 0.35 327
150 0.38 0.34 363
185 0.42 0.33 405
240 0.47 0.32 464

12/20(24) kV

Cross Section (mm²) Capacitance (μF/km) Inductance (mH/km) Current Rating (A)
35 0.17 0.47 171
50 0.18 0.44 199
70 0.20 0.41 243
95 0.22 0.40 292
120 0.24 0.38 328
150 0.26 0.37 364
185 0.28 0.35 408
240 0.31 0.34 467

18/30(36) kV

Cross Section (mm²) Capacitance (μF/km) Inductance (mH/km) Current Rating (A)
50 0.14 0.48 202
70 0.15 0.45 245
95 0.17 0.42 291
120 0.18 0.41 330
150 0.19 0.39 366
185 0.21 0.38 411
240 0.23 0.36 470

Dimensions and Weight

6/10(12) kV

Cross Section (mm²) Conductor Diameter (mm) Insulation Thickness (mm) Screen Area (mm²) Core Sheath Thickness (mm) Core Diameter (mm) Bedding Thickness (mm) Steel Wire Diameter (mm) Serving Thickness (mm) Overall Diameter (mm) Weight (kg/m)
35 7.0 3.4 16 2.5 24 2.0 3.15 3.5 70 7.5
50 8.2 3.4 16 2.5 25 2.0 3.15 3.5 73 8.2
70 9.9 3.4 16 2.5 27 2.0 4.0 3.5 77 9.9
95 11.5 3.4 16 2.5 28 2.0 4.0 3.5 80 11.1
120 13.0 3.4 16 2.5 30 2.0 4.0 3.5 84 12.2
150 14.5 3.4 25 2.5 31 2.0 4.0 3.5 87 13.6
185 16.1 3.4 25 2.5 33 2.0 5.0 4.0 93 16.8
240 18.6 3.4 25 2.5 35 2.0 5.0 4.0 99 19.1

12/20(24) kV

Cross Section (mm²) Conductor Diameter (mm) Insulation Thickness (mm) Screen Area (mm²) Core Sheath Thickness (mm) Core Diameter (mm) Bedding Thickness (mm) Steel Wire Diameter (mm) Serving Thickness (mm) Overall Diameter (mm) Weight (kg/m)
35 7.0 5.5 16 2.5 28 2.0 3.15 3.5 78 8.8
50 8.2 5.5 16 2.5 30 2.0 3.15 3.5 83 9.3
70 9.9 5.5 16 2.5 31 2.0 4.0 3.5 87 11.4
95 11.5 5.5 16 2.5 33 2.0 4.0 3.5 89 12.7
120 13.0 5.5 16 2.5 34 2.0 4.0 4.0 94 14.1
150 14.5 5.5 25 2.5 36 2.0 4.0 4.0 97 15.3
185 16.1 5.5 25 2.5 37 2.0 5.0 4.0 102 18.6
240 18.6 5.5 25 2.5 40 2.0 5.0 4.0 108 21.1

18/30(36) kV

Cross Section (mm²) Conductor Diameter (mm) Insulation Thickness (mm) Screen Area (mm²) Core Sheath Thickness (mm) Core Diameter (mm) Bedding Thickness (mm) Steel Wire Diameter (mm) Serving Thickness (mm) Overall Diameter (mm) Weight (kg/m)
50 8.2 8.0 16 2.5 35 2.0 3.15 3.5 93 11.1
70 9.9 8.0 16 2.5 36 2.0 4.0 4.0 99 12.8
95 11.5 8.0 16 2.5 38 2.0 4.0 4.0 102 14.9
120 13.0 8.0 16 2.5 39 2.0 4.0 4.0 105 16.2
150 14.5 8.0 25 2.5 41 2.0 4.0 4.0 108 17.6
185 16.1 8.0 25 2.5 42 2.0 5.0 4.0 113 21.0
240 18.6 8.0 25 2.5 45 2.0 5.0 4.0 119 23.4
