Mud Resistant Composite Cable | NEK 606 Offshore Marine Data & Power Cable

Product Overview

This Mud Resistant Composite Cable integrates Cat6 data, coaxial, and power cables into a single robust solution, featuring copper wire braid armor and a flame retardant oil & mud resistant outer sheath. Specifically designed for challenging offshore and marine environments where multiple connectivity types and extreme durability are required.

Key Features

• Multi-Functional Design: Combines Cat6 data, RG59 coaxial, and power cables

• Extreme Environment Protection: Oil and mud resistant LSZH outer sheath

• Enhanced Armoring: Tinned copper wire braid for mechanical protection

• Flame Retardant: LSZH materials throughout construction

• Comprehensive Standards: Compliant with NEK 606 and IEC marine standards

• Versatile Application: Suitable for harsh offshore and marine conditions

Applications

• Offshore drilling operations

• Marine exploration equipment

• Subsea instrumentation and control

• Offshore platform data and power transmission

• Mud-intensive marine environments

• Harsh condition industrial applications

Standards Compliance

• IEC 60092-359 - Shipboard cable standards

• IEC 60332-3-22 - Flame spread test for bunched cables

• IEC 60754-1,2 - Halogen gas emission tests

• IEC 61034-1,2 - Smoke density measurement

• NEK 606:2004 - Offshore and marine cable standard

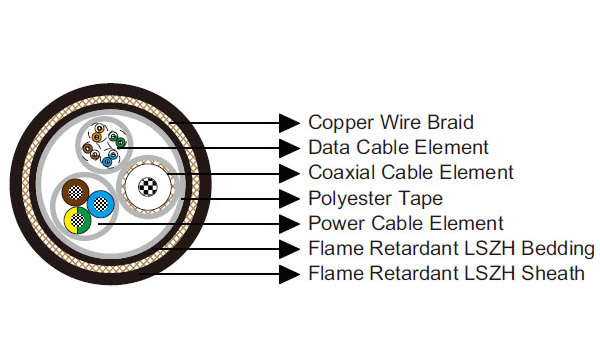

Construction Details

1) Cat6 U/UTP Data Cable (4×2×0.57mm)

• Conductors: Solid bare copper wire

• Insulation: Polyethylene (PE)

• Twinning: Two coloured insulated wires twisted to form pairs

• Sheath: Flame retardant LSZH, grey colour

2) RG59 Coaxial Cable

• Conductors: 0.58mm solid bare copper wire

• Insulation: Polyethylene (PE)

• Shielding: Bare copper wire braid

• Sheath: Flame retardant LSZH, grey colour

3) Power Cable (3×1.0mm²)

• Conductors: 7/0.44mm stranded bare copper wire

• Insulation: XLPE (Blue, Brown, Green/Yellow colours)

• Sheath: Flame retardant LSZH, grey colour

4) Element Assembly

• Bedding: Flame retardant LSZH

• Armour: Tinned copper wire braid

• Outer Sheath: Oil & mud resistant, flame retardant LSZH, grey colour

• Filler: PP, PVC, PE or LSZH material

• Wrapping: Polyester tape

Dimensions and Weight

Note: Other constructions can be offered upon request to meet specific application requirements.
