150/250V XLPE Insulated, LSOH (SHF1) Sheathed, Armoured Flame Retardant Instrumentation & Control Cable (Multicore) – Marine & Offshore

Offshore Instrumentation and Signal Cable
Description

Product Overview

The 150/250V IEC60092 standard offshore and marine armoured cables are used on board ships in all locations for fixed installations complying with IEC standard 60092-352. These cables are flame retardant, low smoke, and halogen free, making them suitable for installations on passenger ships as well as other commercial vessels.

Approvals:

  • IEC 60092-350/351/376/359

  • IEC 60332-1

  • IEC 60332-3-22

  • IEC 60754-1/2

  • IEC 61034

Technical Data:

  • Temperature range during installation: fixed installed: -30°C up to +90°C

  • Short-circuit temperature (max. 5 s): 250°C

  • Nominal voltage: 150/250V

  • Minimum inner bending radius: 4×OD

Specifications

Property Details
Voltage Level Low Voltage (150/250V)
Flame Retardant ✓ (IEC 60332-1, IEC 60332-3-22)
Low Smoke & Halogen Free ✓ (IEC 60754-1/2, IEC 61034)
Operating Temperature -30°C to +90°C
Short Circuit Temperature 250°C (max 5s)
Bending Radius 4×OD

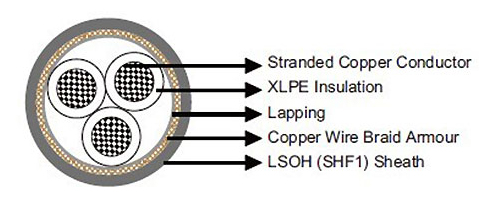

Construction

  1. Conductor: Class 2 stranded copper conductor

  2. Insulation: XLPE

  3. Inner Covering: Lapping

  4. Armour: Copper wire braid

  5. Outer Sheath: LSOH (SHF1). SHF2 available on request

Standard insulation colors: White with printed number

Technical Parameters

Datasheet – Armoured Multicore Instrumentation & Control Cable

Construction No. of Cores × Cross Section (mm²) Nominal Insulation Thickness (mm) Nominal Sheath Thickness (mm) Nominal Overall Diameter (mm) Nominal Weight (kg/km)
2×0.75 0.5 1.2 7.2 80
3×0.75 0.5 1.2 7.5 90
5×0.75 0.5 1.4 8.9 130
7×0.75 0.5 1.6 9.8 150
12×0.75 0.5 1.7 12.4 230
19×0.75 0.5 1.9 14.6 320
27×0.75 0.5 2.1 17.3 460
37×0.75 0.5 2.2 19.3 590
2×1.0 0.5 1.4 7.9 90
3×1.0 0.5 1.4 8.3 100
5×1.0 0.5 1.5 9.7 150
7×1.0 0.5 1.6 10.4 180
12×1.0 0.5 1.8 13.2 270
19×1.0 0.5 2.1 15.9 420
27×1.0 0.5 2.2 18.4 560
37×1.0 0.5 2.4 20.7 710
