150/250V XLPE Insulated, LSOH (SHF1) Sheathed, Armoured Flame Retardant Instrumentation & Control Cables (Multipair/Multitriple) – Marine & Offshore

Offshore Instrumentation and Signal Cable
Description

Product Overview

The 150/250V IEC60092 standard offshore and marine armoured cables are used on board ships in all locations for fixed installations complying with IEC standard 60092-352. These cables are flame retardant, low smoke, and halogen free, making them suitable for installations on passenger ships as well as other commercial vessels.

Approvals:

  • IEC 60092-350/351/376/359

  • IEC 60332-1

  • IEC 60332-3-22

  • IEC 60754-1/2

  • IEC 61034

Technical Data:

  • Temperature range during installation: fixed installed: -30°C up to +90°C

  • Short-circuit temperature (max. 5 s): 250°C

  • Nominal voltage: 150/250V

  • Minimum inner bending radius: 6×OD

Specifications

Property Details
Voltage Level Low Voltage (150/250V)
Working Temperature 90°C
Flame Retardant ✓ (IEC 60332-1, IEC 60332-3-22)
Low Smoke & Halogen Free ✓ (IEC 60754-1/2, IEC 61034)
Bending Radius 6×OD

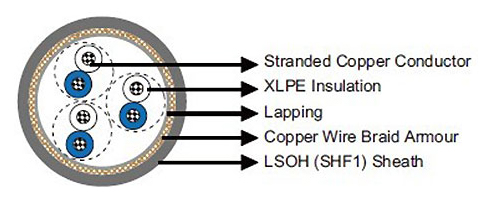

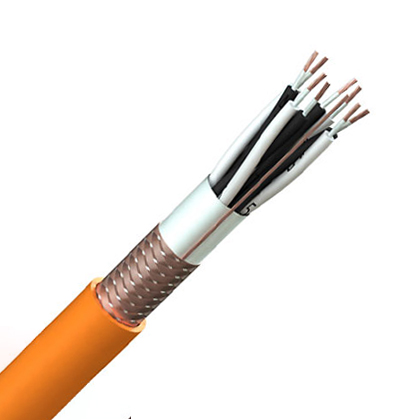

Construction

  1. Conductor: Class 2 stranded copper conductor

  2. Insulation: XLPE

  3. Cabling Element: Pair / Triple

  4. Inner Covering: Lapped polyester tape

  5. Armour: Copper wire braid

  6. Outer Sheath: LSOH (SHF1). SHF2 available on request

Standard insulation colors:

  • Pair: White/blue with printed pair number and core number

  • Triple: White/blue/red with printed triple number

Technical Parameters

Multipair Cables – 2×0.75 mm² (Cores × Cross Section)

Construction No. of Elements × No. of Cores in Element × Cross Section (mm²) Nominal Insulation Thickness (mm) Nominal Sheath Thickness (mm) Nominal Overall Diameter (mm) Nominal Weight (kg/km)
1×2×0.75 0.5 1.2 8.1 90
2×2×0.75 0.5 1.3 9.3 130
3×2×0.75 0.5 1.4 12.4 200
4×2×0.75 0.5 1.4 13.1 230
5×2×0.75 0.5 1.8 15.2 320
6×2×0.75 0.5 1.8 16.1 350
7×2×0.75 0.5 1.8 16.1 370
8×2×0.75 0.5 1.9 17.2 420
10×2×0.75 0.5 1.9 19.1 500
12×2×0.75 0.5 2.0 20.0 560
14×2×0.75 0.5 2.0 20.6 610
16×2×0.75 0.5 2.1 22.2 690
19×2×0.75 0.5 2.1 23.6 790
20×2×0.75 0.5 2.1 23.6 800
24×2×0.75 0.5 2.2 26.8 980
30×2×0.75 0.5 2.3 29.1 1160
37×2×0.75 0.5 2.4 31.1 1360

Multipair Cables – 2×1.0 mm²

Construction No. of Elements × No. of Cores in Element × Cross Section (mm²) Nominal Insulation Thickness (mm) Nominal Sheath Thickness (mm) Nominal Overall Diameter (mm) Nominal Weight (kg/km)
1×2×1.0 0.5 1.3 8.7 110
2×2×1.0 0.5 1.3 9.7 150
3×2×1.0 0.5 1.4 13.2 230
4×2×1.0 0.5 1.8 14.6 310
5×2×1.0 0.5 1.8 16.1 360
6×2×1.0 0.5 1.9 17.3 420
7×2×1.0 0.5 1.9 17.3 440
8×2×1.0 0.5 1.9 18.3 490
10×2×1.0 0.5 2.0 20.5 590
12×2×1.0 0.5 2.0 21.3 660
14×2×1.0 0.5 2.1 22.2 730
16×2×1.0 0.5 2.1 23.7 820
19×2×1.0 0.5 2.2 25.4 940
20×2×1.0 0.5 2.2 25.4 960
24×2×1.0 0.5 2.3 28.9 1170
30×2×1.0 0.5 2.4 31.3 1400
37×2×1.0 0.5 2.5 33.5 1640

Multipair Cables – 2×1.5 mm²

Construction No. of Elements × No. of Cores in Element × Cross Section (mm²) Nominal Insulation Thickness (mm) Nominal Sheath Thickness (mm) Nominal Overall Diameter (mm) Nominal Weight (kg/km)
1×2×1.5 0.6 1.3 9.7 140
2×2×1.5 0.6 1.3 10.9 190
3×2×1.5 0.6 1.8 15.7 340
4×2×1.5 0.6 1.9 16.8 400
5×2×1.5 0.6 1.9 18.6 480
6×2×1.5 0.6 2.0 20.0 550
7×2×1.5 0.6 2.0 20.0 590
8×2×1.5 0.6 2.0 21.2 650
10×2×1.5 0.6 2.1 23.8 800
12×2×1.5 0.6 2.2 24.9 900
14×2×1.5 0.6 2.2 25.8 990
16×2×1.5 0.6 2.3 27.8 1130
19×2×1.5 0.6 2.3 29.6 1290
20×2×1.5 0.6 2.3 29.6 1320
24×2×1.5 0.6 2.5 33.9 1630
30×2×1.5 0.6 2.8 37.3 2040
37×2×1.5 0.6 2.9 39.9 2390

Multitriple Cables – 3×0.75 mm²

Construction No. of Elements × No. of Cores in Element × Cross Section (mm²) Nominal Insulation Thickness (mm) Nominal Sheath Thickness (mm) Nominal Overall Diameter (mm) Nominal Weight (kg/km)
1×3×0.75 0.5 1.3 8.7 110
2×3×0.75 0.5 1.4 12.6 210
3×3×0.75 0.5 1.4 13.3 240
4×3×0.75 0.5 1.8 15.2 330
5×3×0.75 0.5 1.9 16.8 400
6×3×0.75 0.5 1.9 18.6 470
7×3×0.75 0.5 1.9 18.6 490
8×3×0.75 0.5 2.0 20.0 560
10×3×0.75 0.5 2.1 22.5 690
12×3×0.75 0.5 2.1 23.6 770
14×3×0.75 0.5 2.1 24.5 850
16×3×0.75 0.5 2.2 26.1 950
19×3×0.75 0.5 2.3 28.2 1100
20×3×0.75 0.5 2.3 28.6 1140
24×3×0.75 0.5 2.4 31.1 1340
30×3×0.75 0.5 2.5 34.3 1620
32×3×0.75 0.5 2.5 35.4 1720

Multitriple Cables – 3×1.0 mm²

Construction No. of Elements × No. of Cores in Element × Cross Section (mm²) Nominal Insulation Thickness (mm) Nominal Sheath Thickness (mm) Nominal Overall Diameter (mm) Nominal Weight (kg/km)
1×3×1.0 0.5 1.3 9.1 130
2×3×1.0 0.5 1.4 13.4 240
3×3×1.0 0.5 1.8 14.9 320
4×3×1.0 0.5 1.8 16.1 380
5×3×1.0 0.5 1.9 17.8 460
6×3×1.0 0.5 2.0 20.0 560
7×3×1.0 0.5 2.0 20.0 590
8×3×1.0 0.5 2.0 21.3 660
10×3×1.0 0.5 2.1 24.0 810
12×3×1.0 0.5 2.2 25.4 920
14×3×1.0 0.5 2.2 26.4 1020
16×3×1.0 0.5 2.3 28.1 1150
19×3×1.0 0.5 2.4 30.3 1330
20×3×1.0 0.5 2.4 30.8 1380
24×3×1.0 0.5 2.5 33.5 1620
30×3×1.0 0.5 2.8 37.5 2060
32×3×1.0 0.5 2.9 38.9 2190

Multitriple Cables – 3×1.5 mm²

Construction No. of Elements × No. of Cores in Element × Cross Section (mm²) Nominal Insulation Thickness (mm) Nominal Sheath Thickness (mm) Nominal Overall Diameter (mm) Nominal Weight (kg/km)
1×3×1.5 0.6 1.3 10.2 160
2×3×1.5 0.6 1.8 16.0 350
3×3×1.5 0.6 1.9 17.1 430
4×3×1.5 0.6 1.9 18.6 510
5×3×1.5 0.6 2.0 20.6 620
6×3×1.5 0.6 2.1 23.2 750
7×3×1.5 0.6 2.1 23.2 800
8×3×1.5 0.6 2.2 24.9 900
10×3×1.5 0.6 2.3 28.1 1110
12×3×1.5 0.6 2.3 29.6 1260
14×3×1.5 0.6 2.4 31.0 1410
16×3×1.5 0.6 2.5 33.0 1590
19×3×1.5 0.6 2.5 35.4 1830
20×3×1.5 0.6 2.8 36.7 2010
24×3×1.5 0.6 2.9 39.9 2360
30×3×1.5 0.6 3.1 44.2 2880
32×3×1.5 0.6 3.1 45.7 3060
