Product Overview
RG213 Armoured Coaxial Cable is a robust 50Ω solution specifically designed for shipboard installation and indoor marine environments. Featuring double-layer tinned copper braid armour and LSOH construction, this cable delivers reliable RF signal transmission while withstanding the demanding conditions of marine applications.
Key Features
-
Marine Grade Armouring: Double-layer tinned copper braid protection
-
Standard Impedance: 50Ω characteristic impedance
-
Corrosion Resistant: Tinned copper conductors and shielding
-
Fire Safety Compliant: Low smoke zero halogen (LSOH) construction
-
NEK 606 Certified: Meets offshore and marine cable standards
-
Broad Frequency Range: Optimized performance up to 1000MHz
Applications
-
Shipboard communication systems
-
Marine radar and navigation equipment
-
Offshore platform RF systems
-
Indoor marine environment installations
-
Marine instrumentation and control
-
Shipboard antenna systems
Standards Compliance
-
IEC 60092-350 - Shipboard cable standards
-
IEC 60332-3-22 - Flame spread test for bunched cables
-
IEC 60754-1,2 - Halogen gas emission tests
-
IEC 61034-1,2 - Smoke density measurement
-
NEK 606:2004 - Offshore and marine cable standard

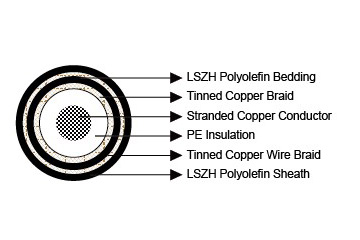

Construction Details
-
Conductors: 13AWG tinned copper
-
Insulation: Polyethylene (PE)
-
Shielding: Tinned copper braid
-
Bedding: Low smoke halogen-free polyolefin, black
-
Armour: Tinned copper wire braid
-
Outer Sheath: Low smoke halogen-free polyolefin
Electrical Characteristics
| Parameter | Value | Unit |
|---|---|---|
| AWG | 13 | - |
| Conductor Construction | 7/0.75 | No./mm |
| Nominal Conductor Diameter | 2.24 | mm |
| Impedance | 50 ± 3 | Ω |
| Capacitance | 101 | pF/m |
| Velocity of Propagation | 66 | % |
| Conductor DCR | 5.7 | Ω/km |
| Shield DCR | 3.9 | Ω/km |
| Inductance | 0.246 | μH/m |
| Time Delay | 5.0 | ns/m |
Attenuation Characteristics
| Frequency | Attenuation |
|---|---|
| 100 MHz | 7.5 dB/100m |
| 200 MHz | 10.5 dB/100m |
| 400 MHz | 15.1 dB/100m |
| 1000 MHz | 29.5 dB/100m |
Mechanical & Thermal Properties
-
Bending Radius: 15 × Outer Diameter
-
Temperature Range: -30℃ to +75℃
-
Installation: Suitable for fixed shipboard installations
-
Durability: Armoured construction for marine environments
Dimensions and Weight
| Parameter | Value | Unit |
|---|---|---|
| Nominal Inner Conductor Diameter | 2.24 | mm |
| Nominal Insulation Thickness | 2.2 | mm |
| Nominal Sheath Thickness | 1.14 | mm |
| Nominal Overall Diameter | 13.9 | mm |
| Nominal Weight | 379 | kg/km |
