Cu/XLPE/SWA/PVC, 6.35/11kV – YJV32 3×120mm² Medium Voltage Power Cable(GB9330, IEC 60502 Certified)
Product Overview
The YJV32 is a 6.35/11kV medium voltage power cable featuring a bare copper conductor, XLPE insulation, steel wire armour (SWA), and a PVC outer jacket. It is designed for reliable power distribution in industrial plants, substations, underground cabling, and renewable energy projects. The cable is suitable for both aerial and buried installations.
Applications
-
Power distribution networks (6.35/11kV systems)
-
Industrial plants, substations, and underground cabling
-
Renewable energy projects (wind/solar farms)
Features & Benefits
-
Robust Protection: SWA armor resists mechanical damage.
-
High Efficiency: XLPE insulation ensures low dielectric loss.
-
Dual Use: Suitable for aerial and buried installations.
-
Global Compliance: Meets GB, IEC, and RoHS standards.
-
UV/Weather-Resistant Jacket: PVC outer sheath for outdoor durability.
-
Mechanical Strength: Designed for crush and rodent resistance.
-
Reliable Performance: Suitable for 6.35/11kV distribution systems.

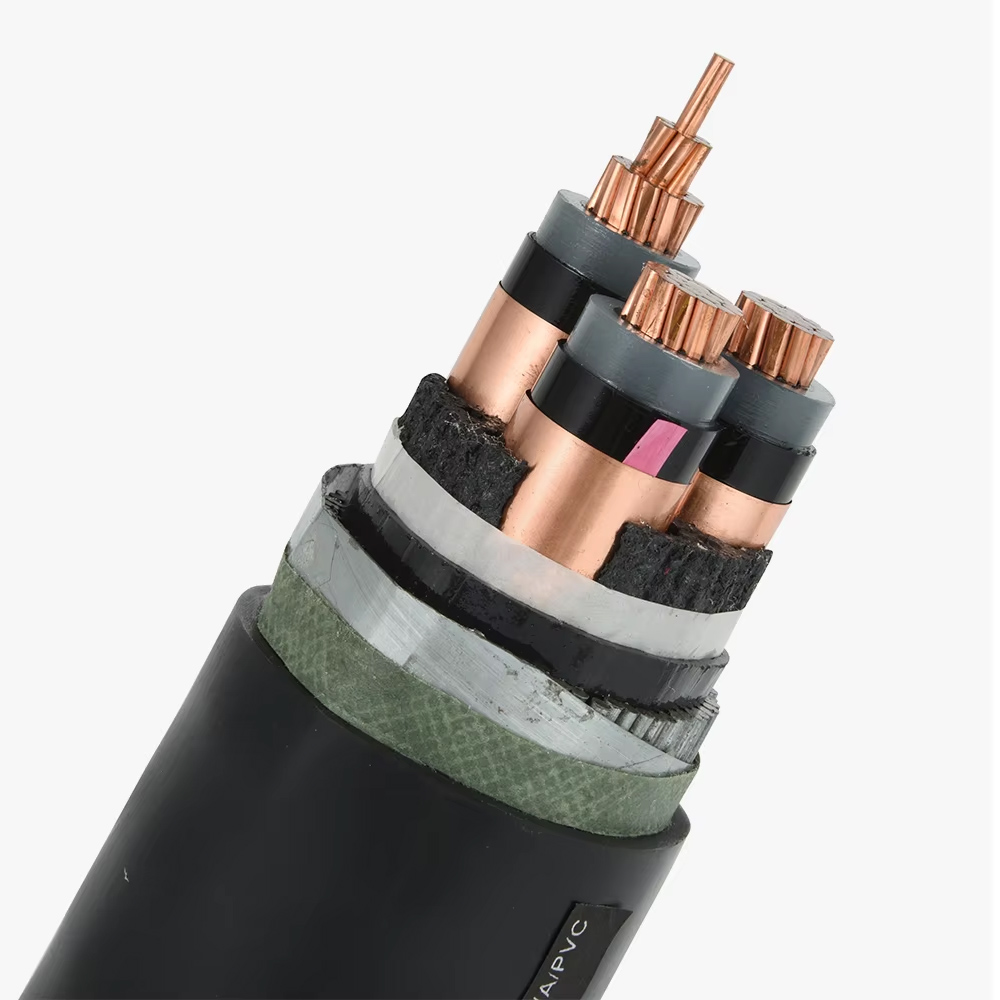

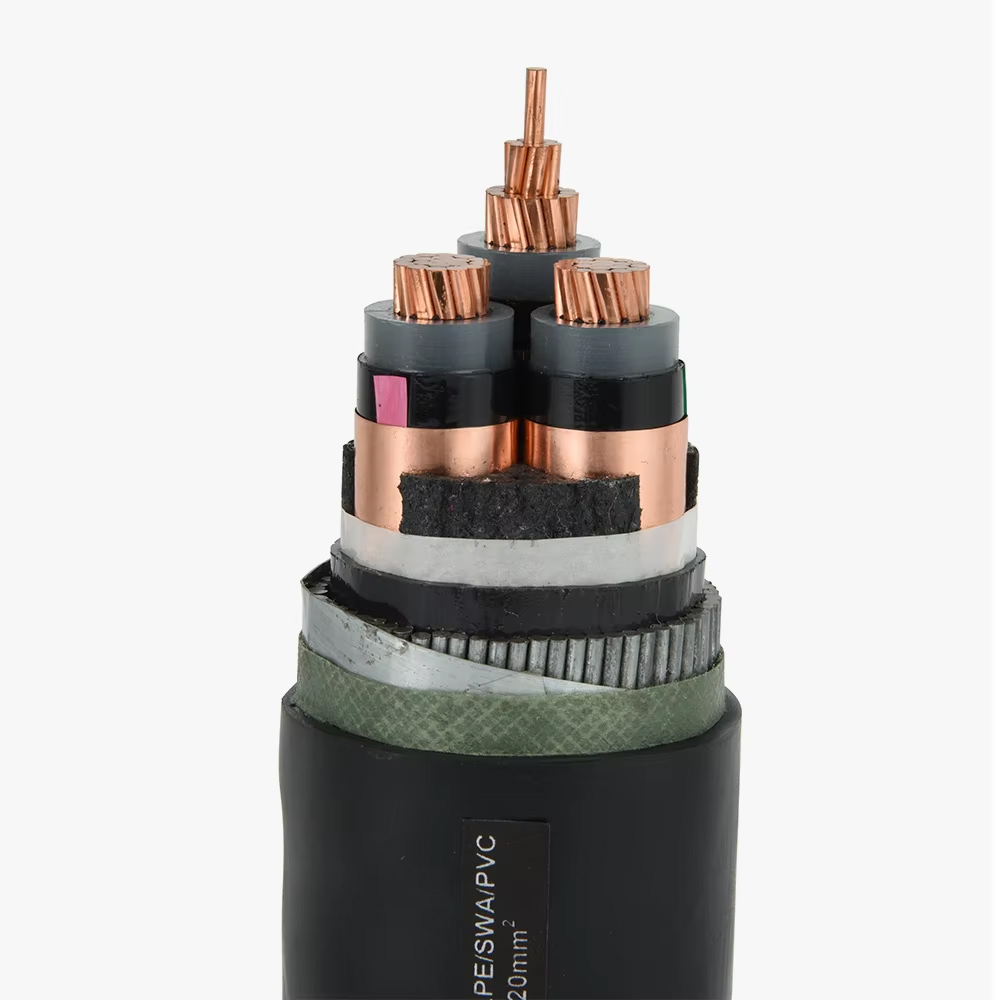

Construction
| Layer | Material | Details |
|---|---|---|
| Conductor | Bare Copper | Class 2 stranded (3×120mm²) |
| Insulation | XLPE (Cross-linked Polyethylene) | Rated for 6.35/11kV |
| Armor | Steel Wire Armored (SWA) | Mechanical protection |
| Jacket | PVC | UV/weather-resistant |
Technical Data
Electrical & Performance Data
-
Rated Voltage: 6.35/11kV (Uo/U)
-
Current Rating:
-
In Air: 355A
-
Buried: 350A
-
-
Short-Circuit Capacity: 5kA/1s (typical, adjust per manufacturer)
-
Insulation Resistance: ≥ 1000 MΩ·km (@20°C)
Mechanical & Environmental
-
Cable Weight: 9630 kg/km
-
Bending Radius: 12× cable diameter (fixed installation)
-
Temperature Range:
-
Operation: -15°C to +90°C
-
Short-Circuit: +250°C (max 5s)
-
Packaging
-
Standard Length: 500m/drum (wooden reel)
Warranty
-
Warranty: 1 year (extendable per contract)
Standards & Compliance
-
GB9330 – China MV Cable Standard (as stated)
-
IEC 60502 – International MV Cable Standard (as stated)
-
CCC
-
ISO 9001
-
RoHS
Comparison with Standard YJV Cable
| Feature | YJV32 (This Cable) | Standard YJV Cable |
|---|---|---|
| Armor | Steel Wire Armored (SWA) | Unarmored |
| Protection | Crush/rodent-resistant | Basic PVC jacket only |
| Installation | Buried/aerial | Primarily aerial |
Ordering Information
To request a quote or place an order, please provide the following information:
-
Model: YJV32-3×120mm²
-
Voltage: 6.35/11kV
-
Customization: Available for length, armor type, and testing (e.g., partial discharge)
-
Quantity: Total length in meters
