YJLSV 1×800mm² Watertight Aluminium Medium Voltage Power Cable – XLPE Insulated, 26/35kV
Compliant with GB9330, IEC 60502-2 | CCC, ISO 9001, RoHS
Product Overview

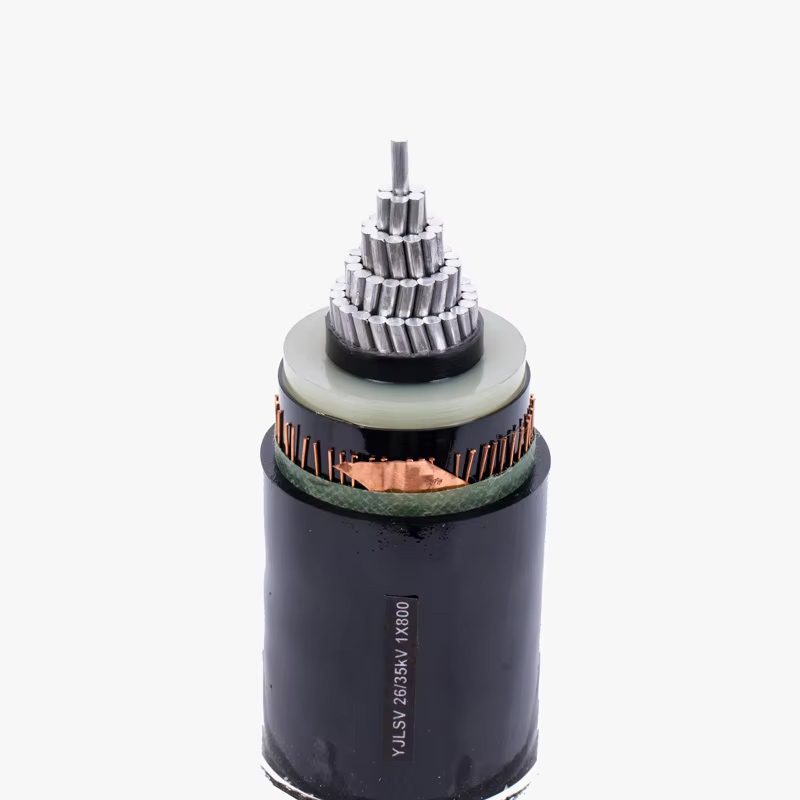

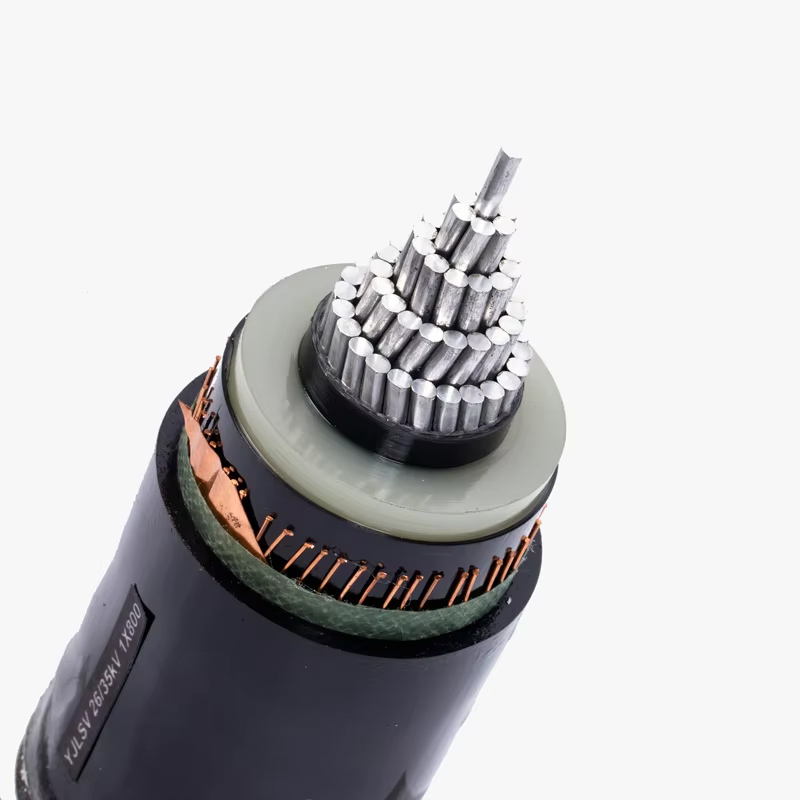

The YJLSV is a watertight single-core aluminium power cable designed for 26/35kV medium voltage systems. It features an aluminium Class 2 conductor, XLPE insulation, longitudinal water-blocking with HDPE tape/swelling powder, and a corrosion/UV-resistant PVC jacket. The cable is suitable for underground power transmission, substations, industrial parks, renewable energy projects, and flood-prone or high-humidity installations.
Applications
-
Underground power transmission (26/35kV systems)
-
Substations, industrial parks, and renewable energy projects
-
Flood-prone or high-humidity installations
Features & Benefits
-
Waterproof Design: HDPE/swelling layers prevent moisture ingress.
-
Lightweight: Aluminium conductor reduces weight vs. copper.
-
High Capacity: Supports up to 1060A in air.
-
Corrosion-Resistant: PVC jacket suits harsh environments.
-
Reliable Insulation: XLPE insulation for medium voltage performance.
-
Longitudinal Water-Blocking: HDPE tape/swelling powder restricts water migration.
-
UV-Resistant Jacket: Suitable for outdoor and buried installations.
Construction
| Layer | Material/Type | Details |
|---|---|---|
| Conductor | Aluminium (Class 2) | 1×800mm² (solid or stranded as specified) |
| Insulation | XLPE | Rated for 26/35kV |
| Waterproofing | Longitudinal water-blocking | HDPE tape / swelling powder |
| Jacket | PVC | Corrosion/UV-resistant |
Technical Data
Electrical & Performance Data
-
Rated Voltage: 26/35kV (Uo/U)
-
Current Rating:
-
In Air: 1060A
-
Buried: 845A
-
-
Short-Circuit Capacity: 10kA/3s (typical)
-
Insulation Resistance: ≥ 3500 MΩ·km (@20°C)
Mechanical & Environmental
-
Cable Weight: 4950 kg/km
-
Bending Radius: 20× cable diameter
-
Temperature Range:
-
Operation: -20°C to +90°C
-
Short-Circuit: +250°C (max 5s)
-
Packaging
-
Standard Length: 300–500m/drum (wooden reel)
Warranty
-
Warranty: 1 year
Comparison with Copper Cables
| Feature | YJLSV (Aluminium) | Copper Equivalent (YJV) |
|---|---|---|
| Conductor | Aluminium (800mm²) | Copper (500mm²) |
| Weight | 4950 kg/km | ~7000 kg/km |
| Cost | 30–40% lower | Higher |
Standards & Compliance
-
GB9330 – China MV Cable Standard (as stated)
-
IEC 60502-2 – International MV Cable Standard
-
CCC
-
ISO 9001
-
RoHS
Ordering Information
To request a quote or place an order, please provide the following information:
-
Model: YJLSV-1×800mm²
-
Voltage: 26/35kV
-
Customization: Available for armor (e.g., steel tape) or fire-resistant versions
-
Quantity: Total length in meters
