High Flexible Energy Chain System Optical Fiber Cable | Port Equipment Data Transmission Cable

Product Overview

This high flexible energy chain system optical fiber cable is specifically engineered for reliable data and signal transmission in port equipment energy chain systems. Designed to withstand continuous movement and mechanical stress while maintaining signal integrity for non-interfere data transmission.

Key Applications

• Energy chain systems of port equipment

• Non-interfere data and signal transmission

• Moving machinery communication systems

• Industrial automation data networks

• Port and terminal equipment control systems

Technical Specifications

• Temperature Range: -25°C to +60°C (outdoor)

• Minimum Bending Radius: 6× cable diameter (D)

• Environmental Resistance: High abrasion, ozone, oil, UV, and moisture resistant

• Flame Retardant: Yes

• Sheath Materials: TPE inner sheath, PUR outer sheath (black)

Optical Performance

• Attenuation:

  • 850nm: 2.5-3.5 dB/km

  • 1300nm: 0.7-1.5 dB/km

• Bandwidth:

  • 850nm: 160-200 MHz/km

  • 1300nm: 200-500 MHz/km

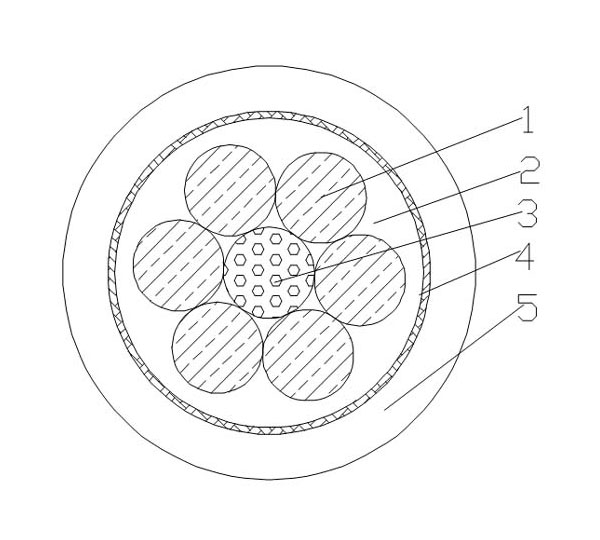

Cable Construction

1. FRP Reinforced element

2. Inner Sheath (TPE mixture)

3. Six/Twelve Cores Fiber optic

4. Braid reinforced layer

5. Outer Sheath (PUR mixture, black)

Product Code System

• G: Cable for Port machinery

• LI: Optical for Energy Chain systems

Technical Specifications Table

Features & Benefits

• High Flexibility: Specifically designed for energy chain systems with continuous movement

• Environmental Protection: Comprehensive resistance to abrasion, ozone, oil, UV, and moisture

• Flame Retardant: Enhanced safety for industrial environments

• Optical Performance: Low attenuation and high bandwidth for reliable data transmission

• Mechanical Durability: FRP reinforcement and braided layer for stress resistance

• Multiple Configurations: 6, 12, and 18 core options available

• Fiber Compatibility: Supports both 50/125 and 62.5/125 multimode fibers

Performance Characteristics

• Suitable for outdoor applications in harsh environments

• Maintains signal integrity during continuous movement

• Resistant to oils and chemicals commonly found in port environments

• UV resistant for extended outdoor service life

• Optimized for high-flexibility applications in energy chain systems

Note: All technical specifications are based on standard manufacturing conditions. Consult our technical team for specific application requirements and custom fiber configurations.
