Product Overview
This high flexible energy chain motor cable is specifically engineered for motor systems in port equipment energy chains. Designed for high-speed applications with significant acceleration capabilities, the cable meets demanding requirements for UV resistance, flame resistance, halogen-free operation, and extreme temperature performance in motor applications.
Key Applications
-
Energy chain systems with motor drives in port equipment
-
Motor power supply systems in moving machinery
-
High-speed and high-acceleration motor applications
-
Automated equipment requiring torsion capability
-
UV-exposed industrial environments
-
Applications demanding halogen-free motor cables
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Temperature Range: -35°C to +100°C
-
Minimum Bending Radius: 6× cable diameter (D)
-
Environmental Resistance: High abrasion, ozone, oil, UV, and moisture resistant
-
Flame Retardant: Yes
-
Halogen Free: Yes

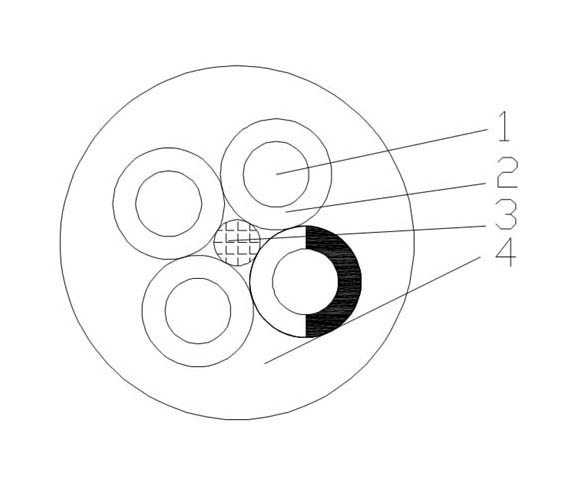

Cable Construction
-
Conductor: Fine stranded copper wire
-
Insulation: TPE Compound
-
Reinforcement: Nylon Reinforced Core
-
Outer Sheath: PUR mixture
Color Coding: Cores are black with white consecutive numbering; includes green/yellow earth core; sheath is black
Product Code System
-
G: Cable for Port machinery / Reinforced
-
D: For Motor systems
-
U: PUR Sheath
-
R: Flexible Conductors
Features & Benefits
-
Motor Application Optimized: Specifically designed for energy chain motor systems
-
High Flexibility: Engineered for torsion capability in moving applications
-
Extreme Temperature Range: Reliable operation from -35°C to +100°C
-
Durable Construction: TPE insulation and PUR sheath for superior performance
-
Environmental Protection: Comprehensive resistance to abrasion, ozone, oil, UV, and moisture
-
Safety Compliant: Flame resistant and halogen free for enhanced safety
-
High-Speed Capable: Suitable for applications with significant accelerations
Performance Characteristics
-
Capable of torsion according to type requirements
-
Suitable for high speeds and accelerations in motor systems
-
UV-resistant for outdoor port applications
-
Flame resistant and halogen free
-
Excellent performance at high and very low temperatures
-
Optimized for motor drive applications in port equipment
Note: All technical specifications are based on standard manufacturing conditions. Consult our engineering team for specific application requirements, available conductor sizes, and custom solutions for your motor system needs.
