Product Overview
This high flexible optical fiber festoon cable is specifically designed for festoon systems requiring reliable non-interfere data and signal transmission in demanding industrial environments. Ideal for crane applications and port machinery where continuous data integrity is critical.
Key Applications
-
Festoon systems for data transmission
-
Non-interfere data and signal transmission
-
Crane and port machinery communication systems
-
Industrial automation data links
-
Moving machinery signal transmission
Technical Specifications
-
Temperature Range: -25°C to +60°C
-
Minimum Bending Radius: 6× cable diameter (D)
-
Environmental Resistance: High abrasion, ozone, oil, UV, and moisture resistant
-
Flame Retardant: Yes
-
Outer Sheath: PUR mixture, black color
Optical Performance
-
Attenuation:
-
850nm: 2.5-3.5 dB/km
-
1300nm: 0.7-1.5 dB/km
-
-
Bandwidth:
-
850nm: 160-200 MHz/km
-
1300nm: 200-500 MHz/km
-

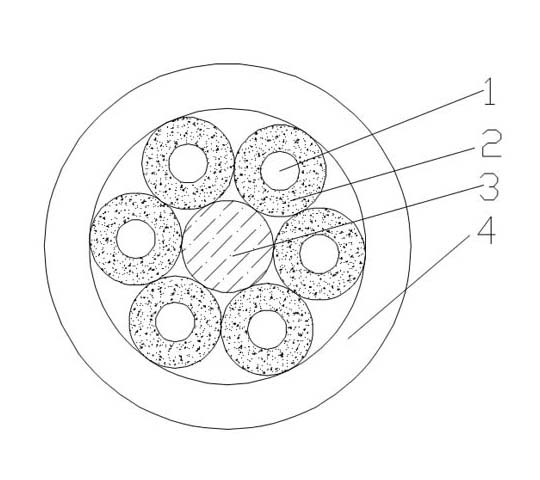

Cable Construction
-
Six Cores optical fiber
-
Aramid fiber reinforced core
-
FRP reinforced element
-
Outer Sheath (PUR mixture)
Product Code System
-
G: Cable for Port machinery
-
LN: Optical for Festoon systems
Technical Specifications Table
| Construction | Nom. OD of Cable (mm) | Max. OD of Cable (mm) | Ref. Weight of Cable (kg/km) | Max. Load (N) |
|---|---|---|---|---|
| 6×50/125 | 9.5 | 11 | 280 | 500 |
| 12×50/125 | 14.0 | 15.5 | 300 | 500 |
| 18×50/125 | 14.0 | 15.5 | 300 | 500 |
| 6×62.5/125 | 9.5 | 11 | 280 | 500 |
| 12×62.5/125 | 14.0 | 15.5 | 300 | 500 |
| 18×62.5/125 | 14.0 | 15.5 | 300 | 500 |
Features & Benefits
-
High Flexibility: Designed for continuous movement in festoon systems
-
Environmental Protection: Comprehensive resistance to abrasion, ozone, oil, UV, and moisture
-
Flame Retardant: Enhanced safety for industrial environments
-
Optical Performance: Low attenuation and high bandwidth for reliable data transmission
-
Mechanical Durability: Aramid fiber and FRP reinforcement for 500N load capacity
-
Temperature Resistant: Stable performance from -25°C to +60°C
Fiber Types Available
-
50/125 multimode fiber
-
62.5/125 multimode fiber
-
6, 12, and 18 core configurations
Note: All technical specifications are based on standard manufacturing conditions. Consult our technical team for specific application requirements and custom fiber configurations.
