Product Overview

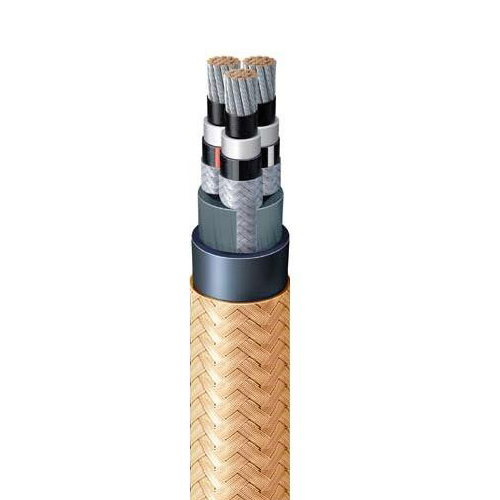

IEEE1580 standard high voltage offshore power cable, type 8kV SENB, provides reliable electrical power transmission for critical offshore operations. Featuring bronze wire armor protection, these cables deliver exceptional performance in demanding marine environments with cold resistance and high temperature stability.
Key Applications
-
Drilling ships and platforms (Jack up, semi-submersible)
-
Production platforms (TLP, Semi-submersible, SPAR, Fixed platforms)
-
FPSO/FSO vessels
-
Offshore power transmission and distribution systems
-
Marine and coastal electrical infrastructure requiring armored protection
Technical Standards & Certifications
-
Primary Standard: IEEE 1580
-
Additional Certifications: UL 1072 & UL 1309
-
Environmental Rating: Cold resistant and high temperature resistant
-
Voltage Rating: 8kV
-
Armor Type: Commercial bronze wire braid
Cable Construction
| Construction Element | Code | Description |
|---|---|---|
| Conductor | S | Flexible stranded tinned annealed copper wires per IEEE 1580 |
| Conductor Screen | Semi-conducting layer (tape/compound) | |
| Insulation | E | EPR (Type E) per IEEE 1580, UL 1072 & UL 1309 |
| Insulation Screen | Non-metallic: Semi-conducting layer (tape/compound) Metallic: Braid of tinned annealed copper wire Separator tape(s) may be applied over metallic part |
|
| Cabling | Three metallic braided conductors cabled together Flame retardant & non-hygroscopic fillers may be used Suitable tape(s) may be applied on cabled core Filler may be applied to obtain circular cable |
|
| Jacket | N | Thermosetting Neoprene (Type N) per IEEE 1580, UL 1072 & UL 1309 |
| Armor | B | Braid of commercial bronze wires Separator tape(s) may be applied under/over the armor |
| Core Identification | 1C: Off-White or Black 3C: Black, White, Red |
Construction Features
-
Premium Conductors: Flexible stranded tinned annealed copper wires
-
Advanced Insulation: EPR (Type E) for superior electrical properties
-
Mechanical Protection: Commercial bronze wire braid armor
-
Comprehensive Shielding: Dual-layer insulation screen with metallic braid
-
Robust Jacket: Thermosetting Neoprene for extreme environmental protection
-
Enhanced Durability: Armored construction for additional mechanical protection
Performance Characteristics
-
Armored Protection: Bronze wire braid provides mechanical strength and durability
-
Temperature Resistant: Suitable for both cold and high-temperature environments
-
Flame Retardant: Enhanced safety features for offshore applications
-
Marine Grade: Specifically designed for harsh offshore conditions
-
Corrosion Resistant: Bronze armor provides excellent corrosion resistance
-
Flexible Design: Optimized for installation in confined marine spaces
Industry Compliance
-
Fully compliant with IEEE1580 standards for offshore cables
-
Certified to UL 1072 and UL 1309 requirements
-
Suitable for global offshore and marine applications
-
Engineered for maximum reliability in critical power transmission systems
-
Armored construction meets offshore mechanical protection requirements
Key Benefits
-
Enhanced mechanical protection with bronze wire armor
-
Reliable performance in extreme offshore conditions
-
Comprehensive electrical shielding for power integrity
-
Corrosion-resistant materials for extended service life
-
Compliance with international marine and safety standards
Note: This armored offshore power cable is specifically designed for applications requiring additional mechanical protection while maintaining the highest electrical standards. All construction materials and methods comply with international marine standards for harsh environment operation.
