Product Overview
P7 BFOU 6/10KV offshore medium voltage power cables are engineered for critical electrical power transmission in demanding marine environments. Certified to NEK 606 standards, these cables provide superior fire resistance, low smoke emission, and halogen-free operation for enhanced safety on offshore installations.
Key Applications
-
Drilling ships & drilling platforms (jack up, semi-submersible)
-
Production Platforms (TLP, semi-submersible, SPAR, fixed platforms)
-
FPSO/FSO vessels
-
Offshore power distribution systems
-
Marine and coastal electrical infrastructure
Technical Standards & Certifications
-
Primary Standard: NEK 606
-
Fire Performance: Fire resistant, Low smoke, Halogen free
-
Voltage Rating: 6/10 kV
-
Environmental Rating: Suitable for harsh offshore conditions

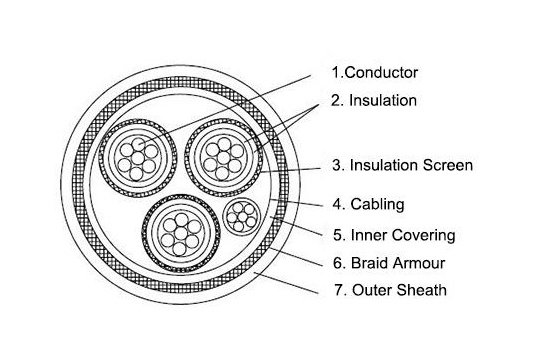

Cable Construction
| Layer | Component | Specification |
|---|---|---|
| 1 | Conductor | Circular tinned stranded copper in accordance with IEC 60228 |
| 2 | Insulation | Mica glass tape & (EPR) Ethylene Propylene Rubber |
| 3 | Insulation Screen | Semi conducting material and tinned copper wire braid |
| 4 | Cabling | Cores are laid up together and wrapped by polyester tape |
| 5 | Inner Covering | Halogen-free flame retardant compound |
| 6 | Braid Armour | Tinned copper wire braid in accordance with IEC 60092-350 |
| 7 | Outer Sheath | Halogen-free thermoset compound in accordance with type SHF2 (RED) |
Construction Features
-
High-Quality Conductor: Circular tinned stranded copper per IEC 60228
-
Advanced Insulation: Mica glass tape & EPR for superior fire resistance
-
Comprehensive Screening: Semi-conducting material with tinned copper braid
-
Reinforced Protection: Tinned copper wire braid armour per IEC 60092-350
-
Safety Sheath: Halogen-free thermoset compound (SHF2 - RED)
Safety & Performance Characteristics
-
Fire Resistant: Maintains circuit integrity during fire emergencies
-
Low Smoke Emission: Minimal smoke generation for enhanced visibility
-
Halogen Free: Eliminates toxic gas emission in fire situations
-
Offshore Rated: Specifically designed for marine environments
-
Corrosion Resistant: Tinned components protect against saltwater corrosion
Industry Compliance
-
Fully compliant with NEK 606 standards
-
Meets IEC 60228 and IEC 60092-350 requirements
-
Suitable for global offshore and marine applications
-
Engineered for maximum safety and reliability in critical power systems
Key Benefits
-
Enhanced safety with fire-resistant and halogen-free construction
-
Reliable performance in extreme offshore conditions
-
Reduced smoke emission for improved evacuation safety
-
Corrosion-resistant materials for extended service life
-
Compliance with international marine standards
Note: This medium voltage offshore power cable is specifically engineered for critical power transmission applications where fire safety and environmental resistance are paramount. All construction materials and methods comply with international offshore standards.
