Energy Chain Communications Bus Coding Cable | 300/300V TPEE/PUR Shielded Data Cable

Crane Cables22
Description

Energy Chain Communications Bus Coding Cable | 300/300V TPEE/PUR Shielded Data Cable-Picture1

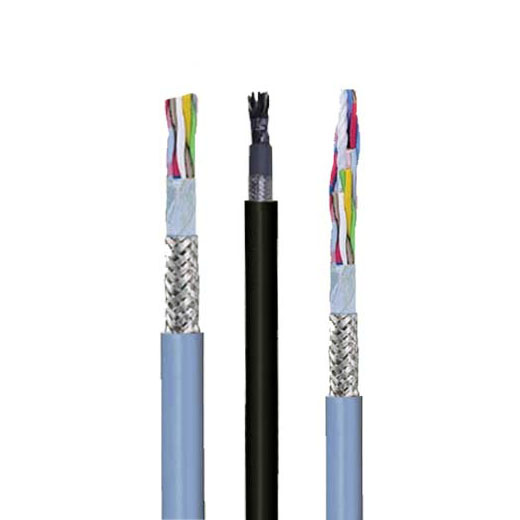

Product Overview

This energy chain communications bus coding cable is specifically engineered for data transmission in energy chain control systems of port equipment. Designed for high mechanical stress environments with frequent alternating bending operations, this cable ensures reliable communication bus signaling in demanding industrial applications.

Key Applications

  • Energy chain control systems of port equipment

  • High mechanical stress control systems

  • High frequency alternating bending operations

  • Communication bus and data transmission applications

  • Industrial automation control systems

Technical Specifications

  • Rated Voltage: 300/300 V

  • Temperature Range: -35°C to +100°C

  • Minimum Bending Radius: 6× cable diameter (D)

  • Environmental Resistance: High abrasion, ozone, oil, UV, and moisture resistant

  • Flame Retardant: Yes

  • Shielding: Metal braid shield for EMI protection

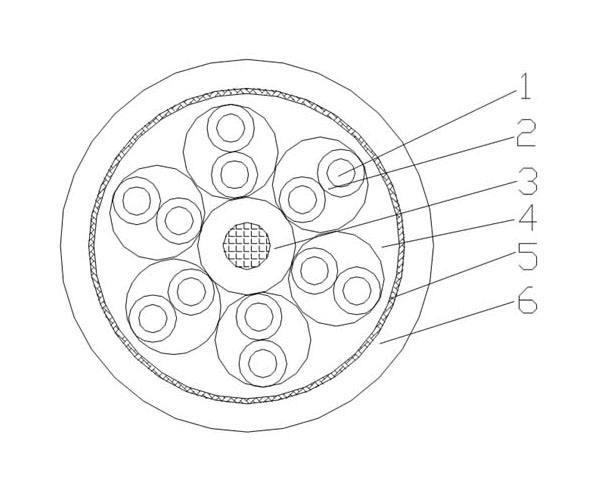

Cable Construction

Energy Chain Communications Bus Coding Cable | 300/300V TPEE/PUR Shielded Data Cable-Picture2

  1. Copper wire Conductor

  2. Insulation: TPEE Compound

  3. Reinforcement: Nylon Reinforced Core

  4. Inner Sheath: TPE

  5. Shielding: Metal Shield layer

  6. Outer Sheath: PUR mixture

Color Coding: Cores are black with white consecutive numbering; outer sheath is white

Product Code System

  • G: Cable for Port machinery / Reinforced

  • T: For Communication System

  • U: PUR Sheath

  • R: Flexible Conductors

  • P: Metal Braid Shield

Technical Specifications Table

Nominal Cross Section (mm²) Construction (mm) Nom. OD of Cable (mm) Max. OD of Cable (mm) Ref. Weight of Cable (kg/km)
4×2×0.5 4×2×16/0.20 13.0 14.5 220
6×2×0.5 6×2×16/0.20 15.0 16.7 260
4×2×1 4×2×32/0.20 16.5 18.0 335
6×2×1 6×2×32/0.20 19.5 21.5 437

Features & Benefits

  • High Flexibility: Optimized for energy chain applications with frequent bending

  • EMI Protection: Metal braid shield ensures reliable data transmission

  • Extreme Temperature Range: Stable performance from -35°C to +100°C

  • Premium Materials: TPEE insulation and PUR sheath for superior durability

  • Environmental Protection: Comprehensive resistance to abrasion, ozone, oil, UV, and moisture

  • Flame Retardant: Enhanced safety for industrial environments

  • Twisted Pair Design: Optimized for communication bus applications

Service Conditions

  • Suitable for high mechanical stress environments

  • Designed for high frequency alternating bending operations

  • Ideal for communication systems in port equipment

  • Rated for both indoor and outdoor industrial applications

  • Compatible with energy chain and cable carrier systems

*Note: All technical specifications are based on standard manufacturing conditions and should be verified for specific application requirements. The rated voltage of 300/300V is maintained as specified in the original documentation.*
