Product Overview
Our Low Voltage Spreader Reeling Cable is engineered for vertical reeling and high mechanical stress applications in movable facilities. With its robust EPR insulation and CR sheath construction, this cable delivers superior performance in the most demanding environments, including port machinery, mining, and heavy-duty reeling systems.
Key Features & Benefits
-
High Mechanical Stress Resistance: Designed for reeling under higher machinery stress, suitable for movable cable transports and vehicles.
-
Superior Temperature Performance: Permissible continuous temperature of 90°C and operational capability down to -35°C outdoors.
-
Excellent Environmental Resistance: Features ozone, UV, and humidity resistant properties for reliable outdoor operation.
-
Robust Oil Resistance: Built with performance characteristics that resist oil, extending service life.
-
Reinforced Construction: Includes a Kevlar braided layer and aramid supporting element for enhanced durability under stress.
Applications
This cable is ideal for a range of demanding applications:
-
Port Machinery and Movable Facilities
-
Vertical Reeling Systems
-
Mining Equipment on Ground and Well Bottoms
-
Movable Cable Transports and Vehicles
-
Other sites with high mechanical stress

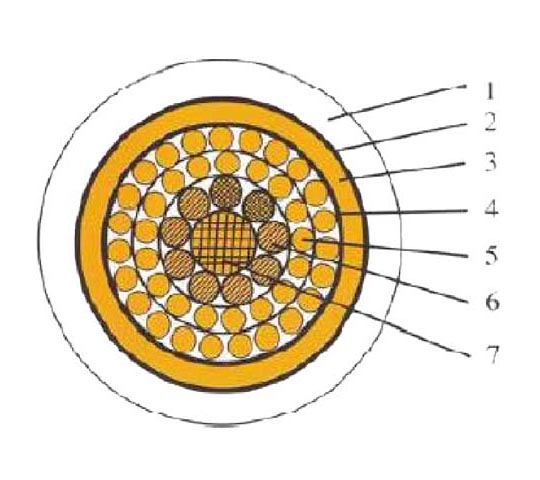

Cable Construction
Our cable features a advanced, multi-layer design for maximum durability:
-
Outer Sheath: CR Compound
-
Braided Reinforce Layer: Kevlar
-
Inner Sheath: CR Compound
-
Separator
-
Insulated Cores: EPR Rubber Compound
-
Filler: Polyamide Fiber Reinforced Rubber
-
Supporting Element: Aramid
Product Code System
-
G: Cable for Port machinery
-
JP: Cable for Reeling systems
-
E: EPR Insulation
-
F: CR Sheath
-
R: Flexible Conductors
Specifications
Detailed Technical Specifications
| Cross Section (mm²) | Conductor Construction (Tinned Copper) | Max. Outer Diameter (mm) | Approx. Weight (kg/km) | Max. Load (N) |
|---|---|---|---|---|
| 24 x 2.5 | 24 x 77/0.20 | 31.5 | 1450 | 3600 |
| 44 x 2.5 | 44 x 77/0.20 | 39.0 | 2400 | 5100 |
| 56 x 2.5 | 56 x 77/0.20 | 45.0 | 3250 | 6000 |
Electrical Ratings & Performance
-
Rated Voltage: U₀/U 0.6/1 kV
-
Test AC Voltage: 2.5 kV for 5 minutes
-
Permissible Continuous Temperature: 90°C
-
Minimum Operating Temperature: -35°C (outdoor)
Key Advantages
-
Proven Durability: Specifically engineered for high-stress reeling applications in port and mining machinery.
-
Superior Material Construction: EPR insulation and CR sheathing provide optimal flexibility and environmental resistance.
-
Reinforced for Stress: Kevlar braiding and aramid elements ensure longevity under constant mechanical stress.
-
Flexible Configuration: Multiple core arrangements available to suit various power and control needs.
-
Customization Options: Cable with an integrated fiber bore can be produced upon customer request.
-
Clear Identification: Standardized product coding for easy specification and ordering.
