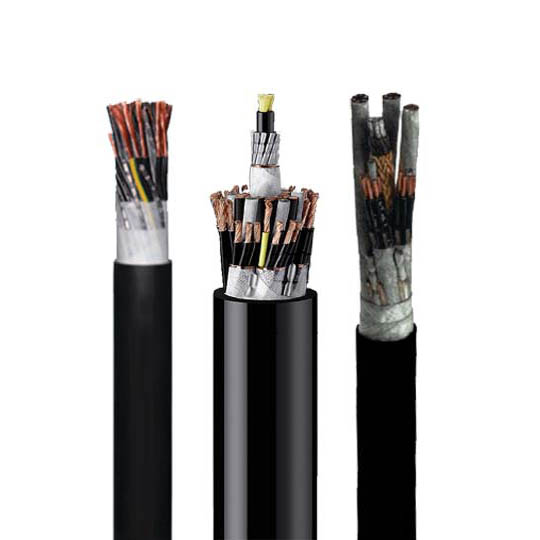

Low Voltage Spreader Basket Cable | 0.6/1kV TPU Sheath | Port Machinery Cable | Vertical Collection System

Product Overview

Low Voltage Spreader Basket Cable is specifically engineered for vertical collection basket systems and feeding machines operating under high mechanical stress conditions. Featuring a robust TPU outer sheath and reinforced construction, this cable delivers reliable performance in demanding port machinery applications where durability and flexibility are critical.

Key Features & Benefits

  • High Mechanical Stress Resistance: Specifically designed for vertical collection basket systems under demanding conditions

  • Superior Environmental Protection: Ozone resistant, UV resistant, and humidity resistant for outdoor applications

  • Enhanced Mechanical Properties: TPU sheath provides tensile strength of 20 MPa with 500% elongation

  • Oil Resistant Performance: Suitable for applications where oil exposure occurs

  • Wide Temperature Range: Operates from -25°C to +70°C in outdoor conditions

  • Reinforced Construction: Braided reinforcement layer with lead chains for added durability

Applications

Specialized port machinery and collection systems:

  • Vertical Collection Basket Systems: Gravity collector applications in basket systems

  • Port Feeding Machines: Equipment for material handling and feeding operations

  • High Mechanical Stress Applications: Systems requiring exceptional durability

  • Outdoor Port Machinery: Equipment exposed to weather conditions

  • Container Handling Systems: Spreader and basket applications in port operations

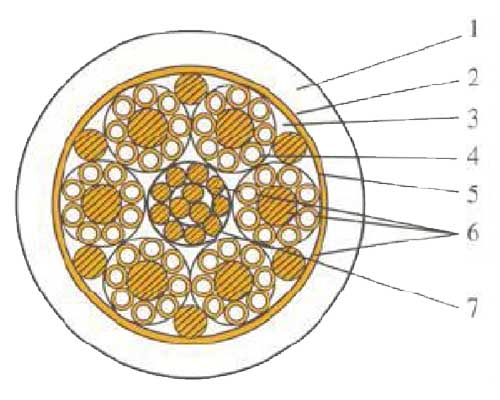

Construction

Advanced Multi-Layer Construction:

  1. Outer Sheath: TPU Sheath

  2. Separator: Protective layer

  3. Insulation: PVC Insulation

  4. Copper Conductor: Current carrying component

  5. Separator: Additional protective layer

  6. Lead Chains: Mechanical reinforcement

  7. Braided Reinforce Layer: Structural strengthening

Product Code System

Cable Identification Coding:

  • G: Cable for Port machinery

  • GL: Gravity collector cables for basket system

  • V: PVC Insulation

  • U: TPU Sheath

  • R: Flexible Conductors

  • D: Fiber Core (Optional)

Physical Properties

Material Performance Specifications:

Component Tensile Strength Elongation
MPa %
Insulation 15 180
Sheath 20 500

Specifications

Detailed Technical Specifications:

Cross Section Conductor Construction Maximum Outer Diameter Approximate Weight Maximum Load
mm² (non tinned copper) mm kg/km N
30×2.5 77/0.20 35.5 2100 2360
36×2.5 77/0.20 39.0 3000 2800
42×2.5 77/0.20 41.5 3250 3530
48×2.5 77/0.20 46.2 3800 4030
54×2.5 77/0.20 52.0 4400 4500

Electrical Ratings

Performance Specifications:

  • Rated Voltage: U₀/U 0.6/1kV

  • Permissible Continuous Temperature: 70°C

  • Minimum Operating Temperature: -25°C (outdoor)

Key Advantages

  • Proven Durability: Specifically designed for high mechanical stress applications in port machinery

  • Superior Mechanical Properties: Excellent tensile strength and elongation characteristics

  • Environmental Resistance: Withstands outdoor conditions including UV exposure and humidity

  • Flexible Configuration: Multiple core arrangements from 30×2.5mm² to 54×2.5mm²

  • Customization Options: Fiber core integration available upon customer request

  • Industry Standard Coding: Clear product identification system for easy specification

  • Reliable Performance: Robust construction ensures long service life in demanding applications
