High Flexible Energy Chain Shield Power Cable | 0.6/1kV TPEE/PUR Port Machinery Cable

Crane Cables
Description

Product Overview

This high flexible energy chain shield power cable is specifically engineered for power transmission in energy chain systems of port equipment. Designed for high-speed applications with significant acceleration capabilities, the cable meets demanding requirements for UV resistance, flame resistance, halogen-free operation, and extreme temperature performance.

Key Applications

  • Energy chain control systems of port equipment

  • Motor power supply systems

  • High-speed and high-acceleration machinery

  • Automated equipment requiring torsion capability

  • UV-exposed industrial environments

  • Applications demanding halogen-free power cables

Technical Specifications

  • Rated Voltage: 0.6/1 kV

  • Temperature Range: -35°C to +100°C

  • Minimum Bending Radius: 6× cable diameter (D)

  • Environmental Resistance: High abrasion, ozone, oil, UV, and moisture resistant

  • Flame Retardant: Yes

  • Halogen Free: Yes

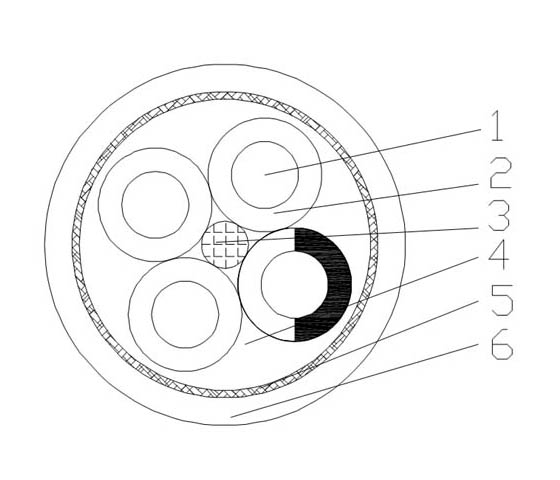

Cable Construction

  1. Conductor: Fine stranded copper wire

  2. Insulation: TPEE Compound

  3. Reinforcement: Nylon Reinforced Core

  4. Inner Sheath: TPU (for multi-core cables)

  5. Shielding: Braid shield layer

  6. Outer Sheath: PUR mixture

Color Coding: Cores are black with white consecutive numbering; includes green/yellow earth core; sheath is black

Product Code System

  • G: Cable for Port machinery / Reinforced

  • D: For Motor systems

  • U: PUR Sheath

  • R: Flexible Conductors

  • P: Metal braided shield

Features & Benefits

  • High Flexibility: Specifically designed for energy chain applications with torsion capability

  • EMC Protection: Braid shield layer for electromagnetic compatibility

  • Extreme Temperature Range: Operates from -35°C to +100°C

  • Premium Materials: TPEE insulation and PUR sheath for superior performance

  • Environmental Protection: Comprehensive resistance to abrasion, ozone, oil, UV, and moisture

  • Flame Retardant & Halogen Free: Enhanced safety for industrial environments

  • Single Core Design: Optimized for power transmission in motor systems

  • High-Speed Capable: Suitable for applications with significant accelerations

Performance Characteristics

  • Capable of torsion according to type

  • Suitable for high speeds and accelerations

  • UV-resistant for outdoor applications

  • Flame resistant and halogen free

  • Excellent performance at high and very low temperatures

  • Shielded for electromagnetic interference protection

Note: All technical specifications are based on standard manufacturing conditions. Consult our engineering team for specific application requirements and custom solutions.
