S2/S6 RFOU(c) 250V Offshore Communication Cable | Collective Screened | Mud Resistant | NEK 606

Offshore Instrumentation and Signal Cable NEK 60627
Description

Product Overview

The S2/S6 RFOU(c) 250V Offshore Communication Cable delivers superior signal transmission performance for critical offshore instrumentation and control systems. Engineered with collective screening technology and full NEK 606 compliance, this cable ensures reliable operation in the most demanding marine environments while providing essential mud resistance, flame retardancy, and halogen-free safety features.

Key Features & Benefits

  • Advanced Collective Screening: Copper-backed polyester tape with tinned copper drain wire provides comprehensive EMI protection

  • Superior Mud Resistance: Special SHF Mud outer sheath withstands extreme offshore drilling conditions

  • Enhanced Signal Integrity: EPR insulation and precise twisting technology ensure clean signal transmission

  • Complete Safety Package: Flame retardant, low smoke, and halogen-free construction for maximum personnel protection

  • Robust Mechanical Design: Tinned copper braid armour provides exceptional durability and reliable grounding

  • Flexible Configuration: Available in 0.75mm², 1.5mm², and 2.5mm² conductor sizes with twisted pairs/triples

Applications

Critical signal transmission systems across various offshore installations:

  • Process Control Instrumentation: Sensor networks, measurement devices, and control systems

  • Safety Critical Systems: Emergency shutdown systems, fire and gas detection, alarm circuits

  • Automation Networks: Valve control, actuator signals, and process automation

  • Communication Infrastructure: Data transmission, inter-platform communications, monitoring systems

  • Marine Operations: Drilling rigs, production platforms, FPSO vessels, and fixed installations

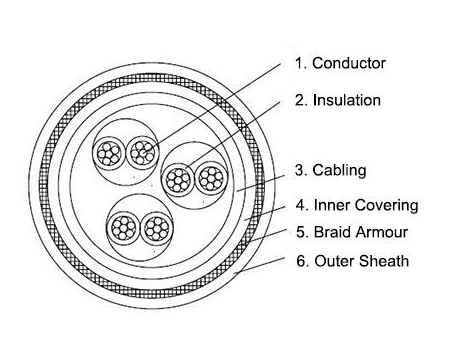

Construction

Precision-engineered for optimal performance in harsh environments:

  1. Conductor: Circular tinned stranded copper (0.75/1.5/2.5mm²) compliant with IEC 60228

  2. Insulation: High-grade Ethylene Propylene Rubber (EPR) for superior electrical properties

  3. Cabling & Screening:

    • Color-coded cores twisted as pairs/triples

    • Collective screening with copper-backed polyester tape

    • Tinned copper drain wire for effective grounding

  4. Inner Covering: Halogen-free flame retardant compound

  5. Braid Armour: Tinned copper wire braid manufactured per IEC 60092-350

  6. Outer Sheath: Halogen-free thermoset compound, Type SHF Mud

Specifications

  • Rated Voltage: 250V

  • Conductor Sizes: 0.75mm², 1.5mm², 2.5mm²

  • Screening Type: Collective screening with drain wire

  • Standards Compliance: NEK 606, IEC 60228, IEC 60092-350

  • Flame Performance: Flame retardant

  • Smoke Emission: Low smoke density

  • Halogen Content: Halogen-free

  • Mud Resistance: SHF Mud sheath compound

  • Armour Type: Tinned copper braid

  • Temperature Rating: -40°C to +90°C operational

  • Installation: Suitable for fixed and moving offshore installations
