A-2YF(L)2Y...ST III BD Outdoor Telephone Cable

Product Overview

The A-2YF(L)2Y...ST III BD is an outdoor telephone cable designed for railway station telecommunication, business and industrial facilities, and telecommunication and IT systems requiring lossless transmission of data and signals. It is suitable for fixed laying in dry and humid rooms, on-wall and in-wall, outdoor use, and underground laying.

The cable features solid copper conductors, PE insulation, quads stranded in groups with longitudinal watertightness due to petrojelly filling, a copolymer-coated aluminium tape screen bonded to the PE sheath, and a black UV-resistant PE outer sheath.

Features & Benefits

  • Lossless Data & Signal Transmission: Designed for telecommunication and IT systems.

  • Longitudinal Watertightness: Petrojelly filling prevents water ingress along the cable.

  • Effective Screening: Copolymer-coated Al-tape bonded to the PE sheath provides reliable shielding.

  • UV-Resistant Sheath: Black PE sheath suitable for outdoor use.

  • Wide Installation Range: Suitable for fixed laying in dry and humid rooms, on-wall, in-wall, outdoor, and underground.

  • Temperature Range: Installation: -20°C to +50°C; Fixed installed: -20°C to +70°C.

  • Nominal Voltage: Max. 225 V.

  • Minimum Inner Bending Radius: 10D.

Typical Applications

  • Railway station telecommunication

  • Business and industrial facilities

  • Telecommunication and IT systems

  • Fixed laying in dry and humid rooms

  • On-wall and in-wall installation

  • Outdoor use

  • Underground laying

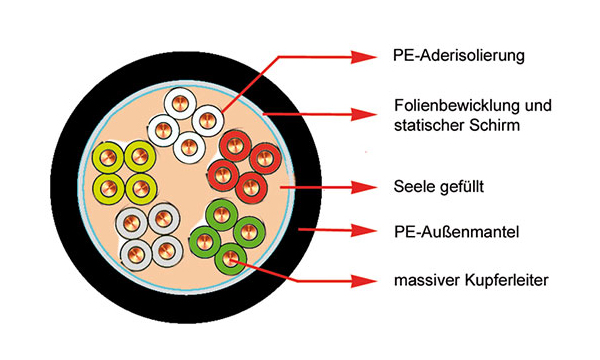

Construction

  • Conductor: Copper conductor, single wire

  • Insulation: PE (Polyethylene), cores stranded to quads, quads stranded in groups, longitudinal watertight due to petrojelly filling

  • Taping: Plastic tape

  • Screen: Copolymer coated Al-tape, bonded to the PE-sheath

  • Sheath: PE black, UV-resistant

Technical Specifications

Technical Data

Parameter Value
Temperature Range – During Installation -20°C to +50°C
Temperature Range – Fixed Installed -20°C to +70°C
Nominal Voltage Max. 225 V
Minimum Inner Bending Radius 10D

Electrical Data

Parameter Nominal Cross-Section 0.6 mm Nominal Cross-Section 0.8 mm
Loop Resistance max. (Ω/km) 130 73.2
Insulation Resistance, min. (MΩ·km) 1,500 1,500
Mutual Capacitance max. at 800 Hz (nF/km) 52 55
Capacitance Imbalance K1, max. at 800 Hz (98% of values) (pF/300 m) 400 400
Capacitance Imbalance K1, max. at 800 Hz (100% of values) (pF/300 m) 800 800
Capacitance Imbalance K9–K12, max. at 800 Hz (98% of values) (pF/300 m) 100 100
Capacitance Imbalance K9–K12, max. at 800 Hz (100% of values) (pF/300 m) 300 300
Capacitance Imbalance E1–E2, max. at 800 Hz (pF/300 m) 800 800

Construction Parameters

Number of Circuits x Nominal Cross-Section Outer Diameter approx. (mm) Cu-Value (kg/km) Total Weight approx. (kg/km)
2 x 2 x 0.6 9.0 13 80
6 x 2 x 0.6 12.0 36 140
10 x 2 x 0.6 13.5 59 190
20 x 2 x 0.6 16.5 115 310
30 x 2 x 0.6 19.5 172 430
40 x 2 x 0.6 21.5 228 545
50 x 2 x 0.6 23.5 285 660
70 x 2 x 0.6 27.0 398 895
100 x 2 x 0.6 31.5 568 1,225
150 x 2 x 0.6 37.0 852 1,780
200 x 2 x 0.6 42.0 1,135 2,315
2 x 2 x 0.8 10.0 22 100
6 x 2 x 0.8 13.5 62 230
10 x 2 x 0.8 15.5 103 330
20 x 2 x 0.8 22.0 203 560
30 x 2 x 0.8 25.0 304 740
40 x 2 x 0.8 27.0 404 900
50 x 2 x 0.8 30.0 505 1,100
70 x 2 x 0.8 33.0 706 1,420
100 x 2 x 0.8 41.0 1,008 2,000
150 x 2 x 0.8 47.0 1,512 2,935
200 x 2 x 0.8 53.0 2,015 3,825

Note: All values are nominal as provided in the source specification. Actual dimensions and weights may vary within standard manufacturing tolerances.

Ordering Information

To request a quote or place an order, please provide the following information:

  • Product Type: A-2YF(L)2Y...ST III BD Outdoor Telephone Cable

  • Nominal Cross-Section: 0.6 mm or 0.8 mm

  • Number of Circuits: e.g., 2 x 2 x 0.6, 10 x 2 x 0.8, 200 x 2 x 0.6

  • Conductor: Copper, single wire

  • Insulation: PE

  • Screen: Copolymer coated Al-tape

  • Sheath: PE black, UV-resistant

  • Quantity: Total length in meters
