Product Overview
FA-DPYCY is a flame-retardant, double-core shipboard power cable rated at 0.6/1kV, designed for fixed installations on ships and offshore units. Featuring double-layer PVC protection over galvanized steel wire armor, EPR insulation, and tinned copper conductors, it delivers maximum reliability in the most demanding marine environments.
Key Features
-
Rated Voltage: 0.6/1kV
-
Conductor: Stranded tinned annealed copper (JIS C 3410, IEC 60228 Class 2)
-
Insulation: 85°C Ethylene Propylene Rubber (EPR)
-
Armor: Galvanized steel wire braid (90% min. coverage) with protective PVC sheath
-
Double Protection: Inner PVC sheath + Outer PVC sheath over armor
-
Flame Retardancy: IEC 60332-1 & IEC 60332-3 Category A (FA-Type)
-
Core Identification: 2-core: Black, White
Applications
-
Fixed electrical installations on all types of ships and vessels
-
Offshore platforms and drilling units
-
Marine power distribution systems
-
Coastal power installations
-
All marine environments requiring reliable power transmission

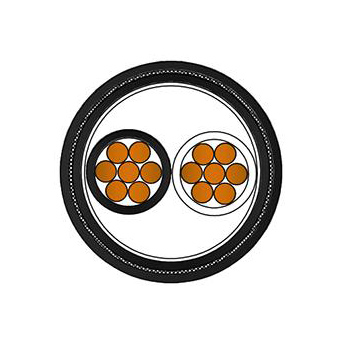

Cable Construction
-
Conductor: Stranded tinned annealed copper wires (JIS C 3410)
-
Insulation: EPR (Ethylene Propylene Rubber) - IEC 60092-351
-
Cabling: Flame retardant and non-hygroscopic fillers with protective tape
-
Overall Shield: Tinned copper wire braid
-
Inner Bedding: PVC (JIS C 3401)
-
Armor: Galvanized steel wire braid (-C Type) or copper alloy wire braid (-CB Type)
-
Outer Sheath: PVC (JIS C 3401)
-
Additional Protection: Uniform white paint on steel wire braid under outer sheath
Technical Specifications
Construction Details
| Component | Code | Specification & Standards |
|---|---|---|
| Conductor | S(D,T) | Tinned annealed stranded copper, class 2 (IEC 60228) |
| Insulation | P | 85°C EPR (IEC 60092-351) |
| Overall Shield | S | Tinned copper wire braid |
| Bedding | Y | PVC (JIS C 3401) |
| Armor | C/CB | Galvanized steel wire braid or copper alloy wire braid |
| Outer Sheath | Y | PVC (JIS C 3401) |
Core Identification & Colors
-
1 Core: Black
-
2 Core: Black, White
-
3 Core: Black, White, Red
-
Outer Sheath Color: Black
Certifications & Standards
-
JIS C 3410:2010: Japanese Industrial Standard for shipboard cables
-
IEC 60092-350: Electrical installations in ships
-
IEC 60332-1: Flame test for single vertical insulated wire/cable
-
IEC 60332-3 Category A: Flame retardancy for bunched cables (FA-Type)
Armor Options & Protection
-
-C Type: Galvanized steel wire braid
-
-CB Type: Copper alloy wire braid
-
Coverage Density: Minimum 90%
-
Corrosion Protection: White paint coating + PVC outer sheath
-
Mechanical Protection: Double-layer PVC sheathing system
Quality Assurance
-
90% minimum armor coverage density guaranteed
-
Double-layer PVC protection for enhanced durability
-
White anti-corrosion paint on steel armor
-
Comprehensive electrical and mechanical testing
-
Full compliance with international marine standards
-
Documentation and certification provided
