Description

Product Overview

CJPF Unarmored Marine Power and Control Cable is designed for reliable performance in marine and offshore applications. Rated at 0.6/1kV with 90°C operational capability, this cable features XLPE insulation and polyolefin sheath, making it ideal for power, lighting, and control systems in demanding marine environments.

Key Features

  • Rated Voltage: 0.6/1kV (U0/U)

  • Temperature Rating: 90°C continuous operation

  • Conductor Options: Class 2 (1.0-10mm²) or Class 5 flexible (16-240mm²)

  • Insulation: XLPE for superior thermal and mechanical properties

  • Sheath: Polyolefin Plastic (SHF1) - flame retardant and durable

  • Standards: Compliant with IEC 60092 series

  • Installation: Fixed laying in most ship areas and open decks

Applications

  • Power distribution systems on ships and vessels

  • Offshore petrol platforms and drilling rigs

  • Marine building electrical systems

  • Lighting and control circuits

  • Fixed installations in most ship areas including open decks

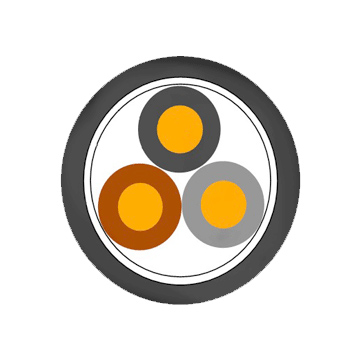

Cable Construction

CJPF Unarmored Marine Power and Control Cable | 0.6/1kV | XLPE Insulated | IEC 60092

  1. Conductor:

    • Stranded copper wire 1.0mm² to 10mm² (Class 2)

    • Stranded copper wire 16mm² to 240mm² (Class 5 Flexible)

    • Annealed stranded copper wire available on request

  2. Insulation: XLPE (Cross-linked Polyethylene)

  3. Bedding: Separate tape for core protection

  4. Sheath: Polyolefin Plastic (SHF1) - flame retardant

Technical Specifications

Service Conditions

  • Rated Voltage: U0/U 0.6/1kV

  • Maximum Operating Temperature: 90°C

  • Installation Type: Fixed laying for most applications

  • Flexible Versions: Available for mobile devices

Bending Radius Requirements

Cable Structure Cable Outer Diameter Minimum Bending Radius
Metal Braided Armored All sizes 6 × D
Non-Armored D ≤ 25 mm 4 × D
Non-Armored D > 25 mm 6 × D

Note: D = Cable outer diameter

Conductor Specifications

Conductor Size Range Conductor Class Application
1.0 - 10 mm² Class 2 Standard power and control
16 - 240 mm² Class 5 (Flexible) Mobile applications and higher flexibility requirements

Compliance & Standards

  • IEC 60092-350: Electrical installations in ships - General

  • IEC 60092-351: Insulating materials specification

  • IEC 60092-360: Sheathing materials requirements

  • Flame Retardant: SHF1 standard compliance

Quality Assurance

  • Manufactured under strict quality control standards

  • Regular testing for electrical and mechanical properties

  • Suitable for harsh marine environments

  • Documentation and certification provided

  • Reliable performance in fixed and mobile applications
