FA-DPYC Shipboard Power Cable | 0.6/1kV Double Core | Steel Wire Armored | JIS C 3410 & IEC

JIS C HEPR/EPR Insulation Marine Shipboard Power Cables
Description

Product Overview

FA-DPYC is a flame-retardant, double-core shipboard power cable rated at 0.6/1kV, designed for fixed installations on ships and offshore units. Featuring EP rubber insulation, PVC sheath, and galvanized steel wire armor with 90% minimum coverage density, it ensures maximum reliability in demanding marine environments.

Key Features

  • Rated Voltage: 0.6/1kV

  • Conductor: Stranded tinned annealed copper (JIS C 3410, IEC 60228 Class 2)

  • Insulation: 85°C Ethylene Propylene Rubber (EPR)

  • Armor: Galvanized steel wire braid (90% min. coverage) with white protective paint

  • Sheath: PVC (JIS C 3401)

  • Flame Retardancy: IEC 60332-1 & IEC 60332-3 Category A (FA-Type)

  • Core Identification: 2-core: Black, White

Applications

  • Fixed electrical installations on all types of ships

  • Offshore platforms and drilling units

  • Marine power distribution systems

  • Coastal and marine industrial facilities

  • All locations requiring reliable shipboard power cables

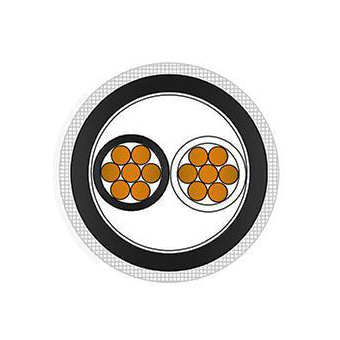

Cable Construction

  1. Conductor: Stranded tinned annealed copper wires (JIS C 3410)

  2. Insulation: EPR (Ethylene Propylene Rubber)

  3. Cabling: Flame retardant and non-hygroscopic fillers with protective tape

  4. Overall Shield: Tinned copper wire braid

  5. Bedding: PVC (JIS C 3401)

  6. Armor: Galvanized steel wire braid (-C Type) or copper alloy wire braid (-CB Type)

  7. Sheath: PVC (JIS C 3401)

  8. Surface Treatment: Uniform white paint on steel wire braid

Technical Specifications

Construction Details

Component Code Specification & Standards
Conductor S(D,T) Tinned annealed stranded copper, class 2 (IEC 60228)
Insulation P 85°C EPR (IEC 60092-351)
Overall Shield S Tinned copper wire braid
Bedding Y PVC (JIS C 3401)
Armor C/CB Galvanized steel wire braid (-C) or copper alloy wire braid (-CB)
Sheath Y PVC (JIS C 3401)

Core Identification & Colors

  • 1 Core: Black

  • 2 Core: Black, White

  • 3 Core: Black, White, Red

  • Outer Sheath Color: Black

  • Armor Finish: Uniform white paint

Certifications & Standards

  • JIS C 3410:2010: Japanese Industrial Standard for shipboard cables

  • IEC 60332-1: Flame test for single vertical insulated wire/cable

  • IEC 60332-3 Category A: Flame retardancy for bunched cables (FA-Type)

  • IEC 60092-351: Insulation material standards

Armor Options

  • -C Type: Galvanized steel wire braid

  • -CB Type: Copper alloy wire braid

  • Coverage Density: Minimum 90%

  • Protection: White corrosion-resistant paint coating

Quality Assurance

  • Manufactured under strict quality control standards

  • 90% minimum armor coverage density ensured

  • White protective paint for enhanced corrosion resistance

  • Comprehensive testing for electrical and mechanical properties

  • Full compliance with international marine safety standards
