DIBS FIBS Low Voltage Marine Power Cables | 0.6/1kV | IEC 60092 | Flame Retardant

IEC 60092-Series Cables HEPR/EPR Insulation Marine Shipboard Power Cables30
Description

Product Overview

DIBS FIBS Low Voltage Marine Power Cables are engineered for reliable power distribution in marine environments. Rated at 0.6/1kV with 90°C continuous operation capability, these cables feature robust construction with tinned copper conductors, EPR insulation, and dual-layer PVC protection for superior performance in demanding maritime applications.

Key Features

  • Rated Voltage: 0.6/1kV

  • Temperature Rating: 90°C long-term operating temperature

  • Conductor: Tinned annealed copper wire

  • Insulation: EPR (Ethylene Propylene Rubber)

  • Inner Covering: High Modulus PVC

  • Outer Sheath: Enhanced PVC for marine environments

  • Standards: IEC 60092 series & IEC 60332-1/-3 (Cat. A) compliant

  • Cable Types: SIBS, DIBS, TIBS, FIBS, 5IBS, MIBS

Applications

  • Power distribution systems on cargo ships and tankers

  • Passenger vessels and cruise liners

  • Special-purpose vessels and naval ships

  • Offshore platforms and drilling rigs

  • Marine power generation and distribution

  • Shipboard electrical systems and switchboards

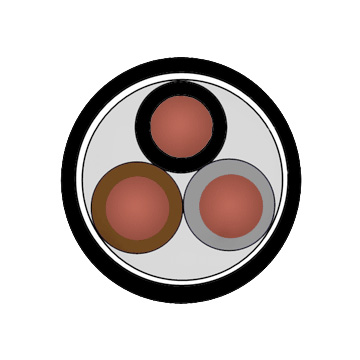

Cable Construction

DIBS FIBS Low Voltage Marine Power Cables | 0.6/1kV | IEC 60092 | Flame Retardant

  1. Conductor: Tinned annealed copper wire - superior corrosion resistance

  2. Insulation: EPR (Ethylene Propylene Rubber) - excellent thermal stability

  3. Inner Covering: High Modulus PVC - mechanical protection

  4. Outer Sheath: Enhanced PVC - resistant to oils, chemicals, and marine atmosphere

Technical Specifications

Electrical Characteristics

  • Rated Voltage: 0.6/1kV

  • Operating Temperature: 90°C maximum continuous

  • Voltage Test: Withstands AC 3.5kV for 5 minutes without breakdown

Bending Radius Requirements

Cable Structure Cable Outer Diameter Minimum Bending Radius
Metal Braided Armored All sizes 6 × D
Non-Armored D ≤ 25 mm 4 × D
Non-Armored D > 25 mm 6 × D

Note: D = Cable outer diameter

Certifications & Standards

  • IEC 60092-350: General requirements for shipboard power cables

  • IEC 60092-351: Insulating materials specifications

  • IEC 60092-354: Cables with extruded solid insulation

  • IEC 60092-359: Cables with special fire performance

  • IEC 60332-1: Flame test for single vertical cable

  • IEC 60332-3: Flame spread test for bunched cables (Category A)

Product Range

  • SIBS: Single core power cable

  • DIBS: Two core power cable

  • TIBS: Three core power cable

  • FIBS: Four core power cable

  • 5IBS: Five core power cable

  • MIBS: Multi-core power cable

Quality Assurance

  • Manufactured under strict quality control standards

  • Regular testing for electrical and mechanical properties

  • Comprehensive documentation and certification

  • Suitable for global marine applications

  • Long service life in harsh marine environments
