Product Code: FMGCH
Rated Voltage: 150/250V
Standard: DIN 89159
Product Overview

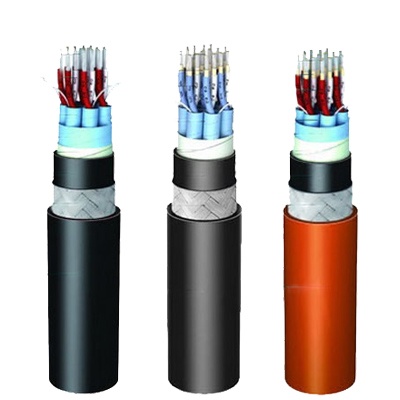

The FMGCH Marine Communication Cable is a premium halogen-free, screened communication cable specifically engineered for critical communication systems in marine environments. Featuring HEPR insulation and copper braid screening, this cable delivers superior signal integrity with enhanced fire safety, making it particularly suitable for passenger ships and sensitive offshore installations.
Key Applications
-
Communication, radio, control, and data processing facilities
-
Ships and offshore installations
-
Passenger ships (due to halogen-free safety features)
-
Critical communication networks requiring EMI protection
Standards & Certifications
-
Primary Standard: DIN 89159
-
Flame Test: IEC 60332-3, IEEE 45-18.13
-
Safety Compliance: Meets all marine safety requirements
Product Advantages
-
Exceptional Operational Safety
Halogen-free materials prevent corrosive and toxic gas emissions during fire incidents, making it ideal for passenger vessels -
Superior EMI Protection
Copper braid armor provides excellent electromagnetic interference shielding for reliable signal transmission -
Long-term Reliability
HEPR insulation and cross-linked polychloroprene sheath ensure durable performance in harsh marine environments -
Wide Temperature Tolerance
Operating range from -35°C to 85°C, suitable for various marine installation locations -
Flame Retardant Performance
Complies with IEC 60332-3 Category A for bunched cables applications
Cable Construction
-
Conductor
Annealed Standard Copper, Class 2 -
Insulation
HEPR (Cross-linked Ethylene Propylene Rubber) -
Laying Up
Pair stranding (2 pair cable = quad stranding) -
Armour
Separator tape + Bare copper braid -
Outer Sheath
Cross-linked Polychloroprene Rubber
Technical Specifications
Electrical Characteristics
| Parameter | Specification |
|---|---|
| Rated Voltage Uo/U(Um) | 150/250V |
| Test Voltage | 1500V |
Performance Characteristics
| Parameter | Specification |
|---|---|
| Maximum Operating Temperature | 85°C |
| Short-circuit Maximum Temperature | 250°C |
| Minimum Installation Temperature | -10°C |
| Minimum Operating Temperature | -35°C |
| Flame Retardant | IEC 60332-3 Cat. A |
| Smoke Density | IEC 61034 Compliant |
| Gas Corrosivity | IEC 60754-2 Compliant |
| Gas Toxicity | Non-toxic (IEC 60754-1) |
| EMI Resistance | Yes |
| Minimum Bending Radius | 6 × Cable Diameter |
Product Models & Specifications
FMGCH Marine Halogen Free Communication Cable
| Model | Pairs | Cross Section (mm²) | Outer Diameter (mm) | Weight (kg/km) | |
|---|---|---|---|---|---|
| Min | Max | ||||
| FMGCH01 | 1 | 0.75 | 7.5 | 9.5 | 90 |
| FMGCH02 | 10 | 0.75 | 17.5 | 19.5 | 470 |
| FMGCH03 | 14 | 0.75 | 19.5 | 22 | 610 |
| FMGCH04 | 19 | 0.75 | 22 | 25 | 770 |
| FMGCH05 | 2 | 0.75 | 8.5 | 10 | 130 |
| FMGCH06 | 24 | 0.75 | 25 | 28 | 950 |
| FMGCH07 | 4 | 0.75 | 11.5 | 13.5 | 230 |
| FMGCH08 | 7 | 0.75 | 15 | 17 | 340 |
