CJPFP Screened Marine Power and Control Cable | 0.6/1kV | EMI Protected | Low Smoke Halogen-Free | IEC 60092

Product Overview

CJPFP Screened Marine Power and Control Cable is specifically designed for sensitive electrical systems in marine environments. Rated at 0.6/1kV with 90°C operational capability, this lightweight screened cable features XLPE insulation, tinned copper screening, and polyolefin sheath, providing excellent EMI protection and flame retardancy for power, lighting, and control applications.

Key Features

• Rated Voltage: 0.6/1kV

• Temperature Rating: 90°C continuous operation

• EMI Protection: Integrated screening with tinned copper drain wire

• Insulation: XLPE for superior electrical properties

• Sheath: Polyolefin Plastic (SHF1) - flame retardant

• Safety Compliance: Low smoke, halogen-free (IEC 61034, IEC 60754)

• Lightweight Design: Ideal for applications requiring reduced cable weight

• Standards: Full compliance with IEC 60092 series

Applications

• Power, lighting and control systems on ships and vessels

• Offshore petrol platforms and drilling rigs

• Marine building electrical installations

• Sensitive electronic equipment requiring EMI protection

• Fixed installations in most ship areas including open decks

• Applications requiring lightweight cable solutions

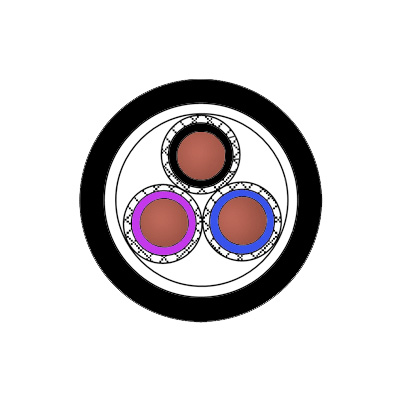

Cable Construction

Component	Material Specification	Additional Details
Conductor	Bare Copper Wire/Tinned copper wire	IEC 60028 Class 2, Class 5
Insulation	XLPE	IEC 60092-351 compliant
Screen	Drain wire of tinned copper	1mm² for all cable sizes
Sheath	Polyolefine Plastic (SHF1)	IEC 60092-359 compliant

Technical Specifications

Service Conditions

• Rated Voltage: 0.6/1kV

• Maximum Operating Temperature: 90°C

• Installation: Fixed laying for standard applications

• Flexible Versions: Available for mobile devices

Bending Radius Requirements

Note: D = Cable outer diameter

Certifications & Standards

• IEC 60092-353: Electrical installations in ships - Cables with extruded solid insulation for rated voltages 1 kV and 3 kV

• IEC 60028: Conductor standards (Class 2, Class 5)

• IEC 60092-351: Insulating materials specification

• IEC 60092-359: Sheathing materials requirements

• IEC 60332-3-22: Flame retardancy testing

• IEC 61034: Low smoke emission testing

• IEC 60754: Halogen content testing

Screening System

• Screen Type: Comprehensive electromagnetic screening

• Drain Wire: Tinned copper, 1mm² cross-section

• Purpose: EMI/RFI protection for sensitive control systems

• Application: Critical systems requiring interference protection

Safety Features

• Flame Retardant: IEC 60332-3-22 compliant

• Low Smoke: IEC 61034 compliant for reduced smoke emission

• Halogen-Free: IEC 60754 compliant for minimal corrosive gas emission

• Enhanced Safety: Ideal for confined marine spaces

Quality Assurance

• Manufactured under strict quality control standards

• Regular testing for electrical and mechanical properties

• Comprehensive screening effectiveness verification

• Suitable for harsh marine environments

• Complete documentation and certification provided
