Product Code: FMGCG
Rated Voltage: 150/250V
Standard: DIN 89159
Product Overview

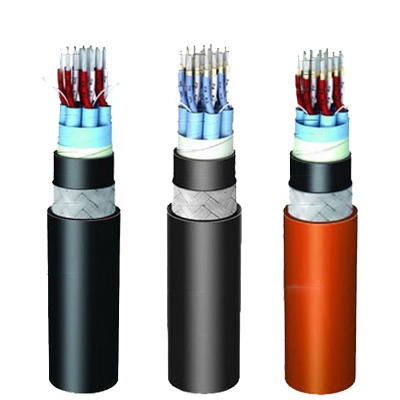

The FMGCG Marine Communication Cable is a premium screened communication cable specifically engineered for critical communication, radio, and control systems on ships and offshore installations. Featuring copper braid screening and flame-retardant construction, this cable ensures reliable signal transmission while meeting the strictest marine safety standards.
Key Applications
-
Fixed Installations: Communication, radio, control, and data processing facilities
-
Marine Platforms: Ships and offshore installations
-
Systems: Critical communication networks and control circuits
-
Environment: All marine locations requiring EMI protection
Standards & Certifications
-
Primary Standard: DIN 89159
-
Flame Test: IEC 60332-3, IEEE 45-18.13 (bunched cables)
-
Safety Compliance: Full compliance with marine safety requirements
Key Features
-
EMI Protection: Copper braid armor provides excellent electromagnetic interference resistance
-
Flame Retardant: Meets IEC 60332-3 Category A for bunched cables
-
Durable Construction: Cross-linked polychloroprene rubber sheath for marine environments
-
Reliable Performance: EPR insulation ensures stable signal transmission
-
Safety Certified: Low smoke emission and non-toxic gas properties
Cable Construction
-
Conductor
Annealed Standard Copper, Class 2 -
Insulation
EPR (Cross-linked Ethylene Propylene Rubber) -
Laying Up
Pair stranding (2 pair cable = quad stranding) -
Armour
Separator tape + Bare copper braid -
Outer Sheath
Cross-linked Polychloroprene Rubber, Black
Technical Specifications
Electrical Characteristics
| Parameter | Specification |
|---|---|
| Rated Voltage Uo/U(Um) | 150/250V |
| Test Voltage | 1500V |
Usage Characteristics
| Parameter | Specification |
|---|---|
| Max. Conductor Temperature | 85°C |
| Short-circuit Max. Temperature | 250°C |
| Minimum Installation Temperature | -10°C |
| Minimum Operating Temperature | -35°C |
| Flame Retardant | IEC 60332-3 Cat. A |
| Smoke Density | IEC 61034 |
| Gas Corrosivity | IEC 60754-2 |
| Gas Toxicity | Non-toxic per IEC 60754-1 |
| EMI Resistance | Yes |
| Minimum Bending Radius | 6 × Cable Diameter |
Product Specifications
FMGCG Ship Communication Cable with Screen 150/250V
| Product No. | Pair No. | Cross Section (mm²) | Outer Diameter (mm) | Approx. Weight (kg/km) | |
|---|---|---|---|---|---|
| Min | Max | ||||
| FMGCG01 | 1 | 0.75 | 7.5 | 9 | 120 |
| FMGCG02 | 10 | 0.75 | 17.5 | 19.5 | 580 |
| FMGCG03 | 14 | 0.75 | 19.5 | 22.5 | 740 |
| FMGCG04 | 19 | 0.75 | 22 | 26 | 930 |
| FMGCG05 | 2 | 0.75 | 8.5 | 10 | 170 |
| FMGCG06 | 24 | 0.75 | 25 | 28.5 | 1200 |
| FMGCG07 | 4 | 0.75 | 12 | 13.5 | 290 |
| FMGCG08 | 7 | 0.75 | 15 | 17 | 410 |
Safety & Performance Benefits
-
Signal Integrity: Copper braid screening protects against electromagnetic interference
-
Fire Safety: Flame-retardant construction prevents fire propagation
-
Environmental Resistance: Suitable for harsh marine conditions
-
Reliable Communication: Ensures uninterrupted signal transmission
-
Long Service Life: Durable materials withstand marine environment challenges
