Product Overview
CKJP82/SA marine control cable combines reliable XLPE insulation with copper braid armor and electromagnetic screening in a cost-effective PVC sheath configuration. Designed for marine and industrial applications requiring flame retardant performance and interference protection.
Key Features
-
Flame Retardant Certified: Complies with IEC 60332-1 & IEC 60332-3-22 standards
-
EMI Protection: Copper braid screening for electromagnetic interference protection
-
Flexible Armor: Tinned copper wire braid for mechanical protection and flexibility
-
Thermal Stability: XLPE insulation rated for 90°C continuous operation
-
Durable Sheath: PVC outer sheath for reliable environmental protection
-
Marine Grade: Designed for offshore and harsh environment applications
Applications
-
Offshore platforms and oil rigs
-
Marine vessel control systems
-
Industrial power and lighting circuits
-
Chemical processing plants
-
Power generation facilities
-
Mining and metallurgical operations
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 150/250V |
| Operating Temperature | 90°C |
| Conductor | Tinned/plain stranded annealed copper |
| Insulation | XLPE |
| Screening | Tinned copper braid or Alu/Polyester tape |
| Armor | Tinned/plain copper wire braid |
| Outer Sheath | PVC |
| Core Range | 1-37 cores |
| Conductor Sizes | 0.5mm², 0.75mm², 1.0mm², 1.5mm², 2.5mm² |
Compliance Standards
-
IEC 60092-350, 376 - Marine cable design specifications
-
IEC 60228 - Conductor standards
-
IEC 60092-360 - Insulation and sheathing materials
-
IEC 60332-1 & 60332-3-22 - Flame retardant certification
-
IEC 60754 - Halogen free compliance
-
IEC 61034 - Low smoke performance

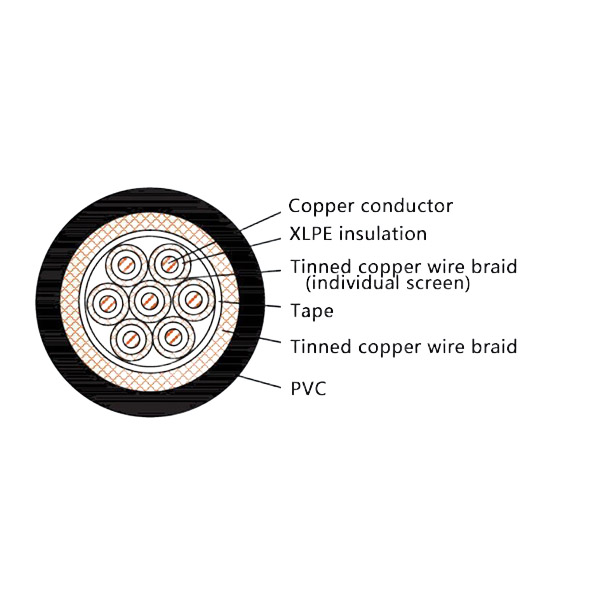

Construction Details
-
Series Code: CK (Marine & Offshore Control Cable)
-
Conductor: Tinned/plain stranded annealed copper wire
-
Insulation: XLPE material
-
Screening: Tinned copper braid or Alu/Polyester tape with drain wire
-
Armor: Tinned/plain copper wire braid
-
Outer Sheath: PVC compound
-
Sheath Color: Black (other colors available)
-
Flammability: SA (Bunched Cables Flame Retardant)
Product Advantages
-
Cost-Effective Solution: PVC sheath provides reliable protection at competitive cost
-
Enhanced Safety: Certified flame retardant performance for bundled installations
-
Superior Flexibility: Copper braid armor allows easy installation in tight spaces
-
EMI Protection: Effective screening ensures signal integrity in noisy environments
-
Marine Durability: Tinned copper components resist corrosion in saltwater environments
-
Standards Compliance: Meets international marine and safety standards
