Product Overview
The CKJPJ85/SC is a premium Low Smoke Halogen Free (LSHF), Flame Retardant marine control cable engineered for applications requiring the highest levels of fire safety, electromagnetic compatibility, and flexible yet durable mechanical protection. It features XLPE insulation, a flexible tinned copper wire braid armor, and a resilient double-layer Cross-linked Polyolefin (SHF2) sheath. This construction is designed for sensitive control and power systems in demanding environments where flexibility, maximum safety, and long-term reliability are critical, fully complying with IEC 60092, IEC 60754 (Halogen Free), and IEC 61034 (Low Smoke) standards.
Key Features & Benefits
-
Enhanced Fire Safety (LSHF): Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties significantly reduce the emission of toxic and corrosive fumes, enhancing personnel safety during fire incidents and improving visibility for evacuation and firefighting in confined spaces.
-
Flexible Armor & EMI Shielding: The tinned copper wire braid armor provides excellent mechanical protection against abrasion, cutting, and vibration while allowing for greater installation flexibility than steel armor. This layer also acts as an effective shield against electromagnetic interference (EMI).
-
Superior Sheath Durability: The double-layer Cross-linked Polyolefin (SHF2) sheath offers exceptional thermal stability, mechanical toughness, and superior resistance to chemicals, oils, and environmental stress compared to standard sheath materials.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 Cores.
-
Standard Outer Sheath Color: Black (other colors available upon request).

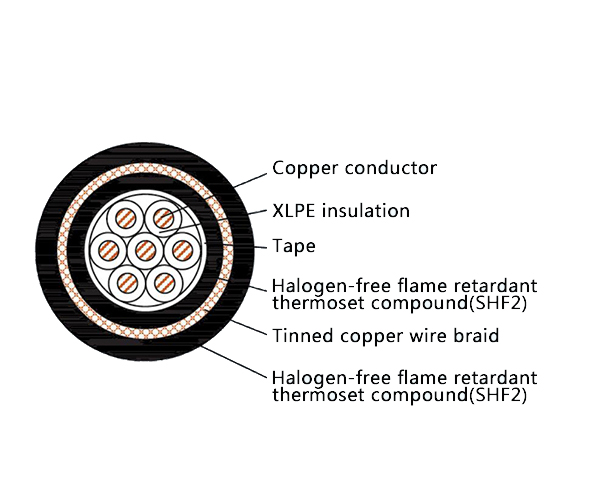

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | XLPE (Cross-linked Polyethylene) Insulation |
| Inner Sheath | PJ | Cross-linked Polyolefin (SHF2) |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 5 | Cross-linked Polyolefin (SHF2) |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is designed and tested in accordance with key international safety and performance standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is specified for critical circuits that demand an optimal balance of fire safety, signal integrity, mechanical durability, and installation flexibility.
-
Marine & Offshore: Control, instrumentation, and power systems on ships, yachts, and offshore platforms, especially in areas requiring frequent cable movement, high flexibility, and adherence to strict LSHF safety codes.
-
Industrial Automation & Infrastructure: Sensitive control wiring in power plants, chemical processing facilities, manufacturing lines, and railway systems where protection against electromagnetic interference, mechanical stress, and stringent fire hazards is essential.
