Product Overview
The CKJPF96/SC is a robust Low Smoke Halogen Free (LSHF), Flame Retardant marine control cable engineered for critical power, lighting, and control systems in the most demanding environments. It combines the enhanced safety of LSHF properties with maximum mechanical protection, featuring XLPE insulation, galvanized steel wire armor, and a durable double-layer Thermoplastic Polyolefin (SHF1) sheath. This construction is designed for fixed installations where fire safety, circuit integrity, and resistance to extreme physical stress are paramount, fully complying with IEC 60092, IEC 60754 (Halogen Free), and IEC 61034 (Low Smoke) standards.
Key Features & Benefits
-
Enhanced Fire Safety (LSHF): Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties minimize the emission of toxic and corrosive fumes, significantly improving personnel safety and visibility during fire incidents in enclosed or ventilated spaces.
-
Maximum Mechanical & Environmental Protection: The galvanized steel wire braid armor provides superior resistance to crushing, impact, abrasion, and rodent damage. The dual-layer SHF1 sheath offers excellent overall toughness, moisture resistance, and protection against oils and chemicals.
-
Reliable High-Temperature Performance: XLPE insulation ensures stable electrical performance and long-term thermal endurance at a continuous temperature of 90°C, suitable for demanding operational conditions.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 Cores.
-
Standard Outer Sheath Color: Black (other colors available upon request).

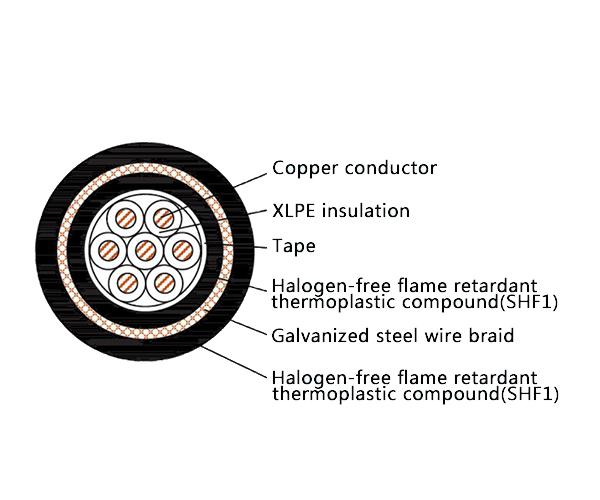

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | XLPE (Cross-linked Polyethylene) Insulation |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 6 | Thermoplastic Polyolefin (SHF1) |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is designed and tested in accordance with key international safety and performance standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is specified for vital circuits installed in areas with severe physical hazards and stringent fire safety requirements.
-
Marine & Offshore: Essential control, power, and safety system circuits on ships, oil & gas platforms, and FPSOs, especially in high-risk fire zones, engine rooms, exposed decks, and areas subject to severe mechanical stress.
-
Heavy Industrial Infrastructure: Critical control and automation systems in power generation plants, chemical processing facilities, mining operations, and heavy metallurgy where LSHF mandates and extreme physical durability are required.
