Product Overview
The CKJPJ80/SC is a premium Low Smoke Halogen Free (LSHF) and Flame Retardant marine control cable designed for critical power, lighting, and control systems. It features XLPE insulation, a high-performance Cross-linked Polyolefin (SHF2) inner sheath, and a flexible tinned copper wire braid armor. With no outer oversheath, this streamlined design offers enhanced fire safety, flexible mechanical and EMI protection, and is grounding-ready for panel and tray installations. It is fully compliant with IEC 60092, IEC 60754 (Halogen Free), and IEC 61034 (Low Smoke) standards.
Key Features & Benefits
-
Enhanced Fire Safety (LSHF): Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties minimize the emission of toxic, corrosive fumes, significantly improving personnel safety and visibility during fire incidents in enclosed spaces.
-
Flexible Armor & EMI Shielding: The tinned copper wire braid armor provides effective protection against abrasion and impact while offering excellent flexibility for easier installation. This layer also serves as a reliable shield against electromagnetic interference (EMI).
-
Grounding-Ready & Compact Design: The single SHF2 sheath over the armor, with no outer oversheath, allows for direct access to the conductive armor for secure grounding. This results in a more compact cable diameter, ideal for dense control panels and grounded cable trays.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 Cores.

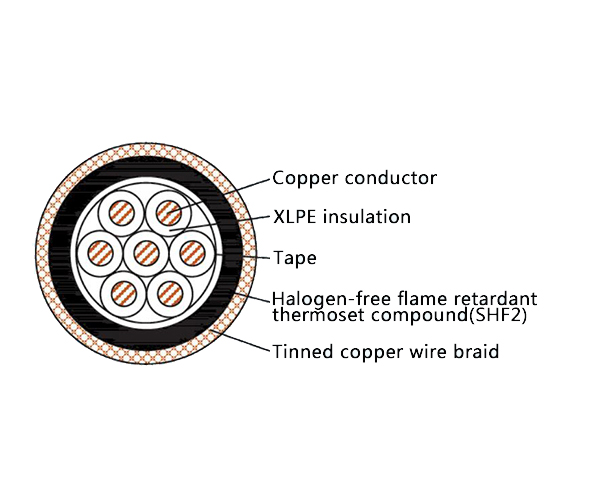

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | XLPE (Cross-linked Polyethylene) Insulation |
| Inner Sheath | PJ | Cross-linked Polyolefin (SHF2) |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is designed and tested in accordance with key international safety and performance standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is ideal for applications requiring fire safety, signal integrity, flexible protection, and a dedicated grounding path in a space-saving design.
-
Marine & Offshore: Control, instrumentation, and power systems within ship and offshore control panels, motor control centers (MCCs), and machinery spaces where LSHF compliance and grounded, flexible armor are required.
-
Industrial Automation: Internal wiring for industrial control panels, PLC systems, and automation equipment where protection against EMI, mechanical stress, and fire hazards is essential, and where the armor serves as the grounding conductor.
