Product Overview
CKJ96/SC marine control cable combines XLPE insulation with low smoke halogen free sheathing and galvanized steel wire armor, providing reliable performance in demanding marine environments where flame retardancy and environmental safety are essential requirements.
Key Features
-
Flame Retardant: Certified to IEC 60332-1 & IEC 60332-3-22 standards
-
Halogen Free: Complies with IEC 60754 for non-corrosive gas emission
-
Low Smoke: Meets IEC 61034 for reduced smoke density
-
Robust Protection: Galvanized steel wire armor for mechanical strength
-
Thermal Stability: XLPE insulation rated for 90°C operation
-
Marine Grade: Designed for offshore and harsh environments
Applications
-
Offshore platforms and oil rigs
-
Marine vessel control systems
-
Industrial power and lighting circuits
-
Chemical processing plants
-
Power generation facilities
-
Mining and heavy industries
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 150/250V |
| Operating Temperature | 90°C |
| Conductor | Tinned/plain stranded annealed copper |
| Insulation | XLPE |
| Armor | Galvanized steel wire braid |
| Outer Sheath | Halogen-free flame retardant thermoplastic (SHF1) |
| Core Range | 1-37 cores |
| Conductor Sizes | 0.5mm², 0.75mm², 1.0mm², 1.5mm², 2.5mm² |
Compliance Standards
-
IEC 60092-350, 376 - Marine cable design
-
IEC 60228 - Conductors
-
IEC 60092-360 - Insulation and sheath
-
IEC 60332-1 & 60332-3-22 - Flame retardancy
-
IEC 60754 - Halogen free
-
IEC 61034 - Low smoke

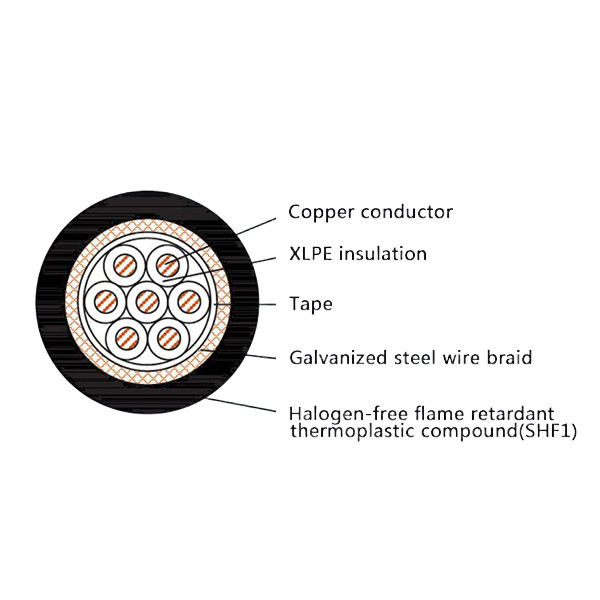

Construction Details
-
Series Code: CK (Marine & Offshore Control Cable)
-
Conductor: Tinned/plain stranded annealed copper wire
-
Insulation: XLPE material
-
Armor: Galvanized steel wire braid
-
Outer Sheath: Halogen-free flame retardant thermoplastic (SHF1)
-
Sheath Color: Black (other colors available)
-
Flammability: SC (Halogen Free Low Smoke Flame Retardant)
Product Advantages
-
Enhanced Safety: Flame retardant with low smoke and zero halogen emission
-
Mechanical Durability: Steel wire armor provides crush and impact resistance
-
Environmental Protection: LSZH sheath ensures safety in confined spaces
-
Corrosion Resistance: Suitable for marine and corrosive environments
-
Reliable Performance: Maintains integrity in high temperature conditions
-
International Certification: Complies with global marine standards
