Product Overview
The CKJPF/SC is a Low Smoke Halogen Free (LSHF) and Flame Retardant marine control cable designed for power, lighting, and control systems where enhanced fire safety is a primary requirement. It features reliable XLPE insulation and an outer Thermoplastic Polyolefin (SHF1) sheath, providing a critical safety advantage by minimizing smoke and toxic fume emissions in the event of a fire. This cable is ideal for general circuits in marine vessels, offshore platforms, and industrial facilities where personnel safety is paramount, fully complying with IEC 60092, IEC 60754 (Halogen Free), and IEC 61034 (Low Smoke) standards.
Key Features & Benefits
-
Enhanced Fire Safety (LSHF): Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties significantly reduce the emission of corrosive, toxic gases and smoke density during a fire, improving visibility for safe evacuation and reducing secondary equipment damage.
-
Reliable & Durable: XLPE insulation ensures stable electrical performance and long-term thermal endurance at temperatures up to 90°C. The SHF1 sheath provides good mechanical protection and environmental resistance.
-
Certified Flame Retardancy: Complies with IEC 60332 standards for flame retardancy, ensuring safety in both single and bunched cable installations.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 Cores.
-
Standard Sheath Color: Black (other colors available upon request).

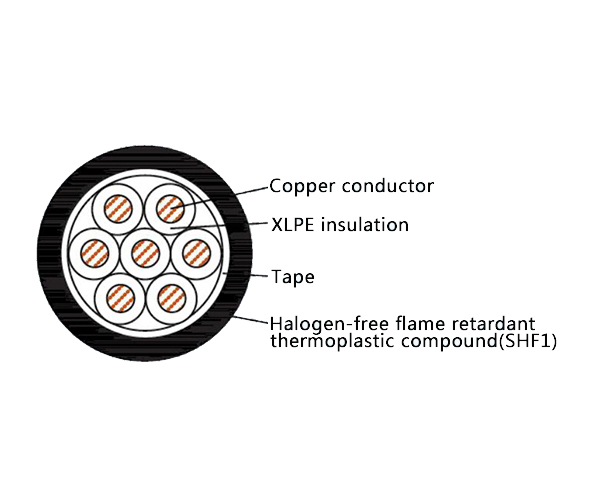

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | XLPE (Cross-linked Polyethylene) Insulation |
| Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is designed and tested in accordance with key international safety standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is specified for general control and power circuits in areas where enhanced fire safety is required without the need for mechanical armor or screening.
-
Marine & Offshore: Power, lighting, and control systems in accommodation areas, control rooms, and general machinery spaces on ships and oil platforms where LSHF regulations apply.
-
Public Buildings & General Industry: Control wiring in commercial buildings, tunnels, and industrial plants where low smoke and non-toxic emissions are prioritized for life safety and asset protection.
